Inline wrapping machine

1. Product Overview

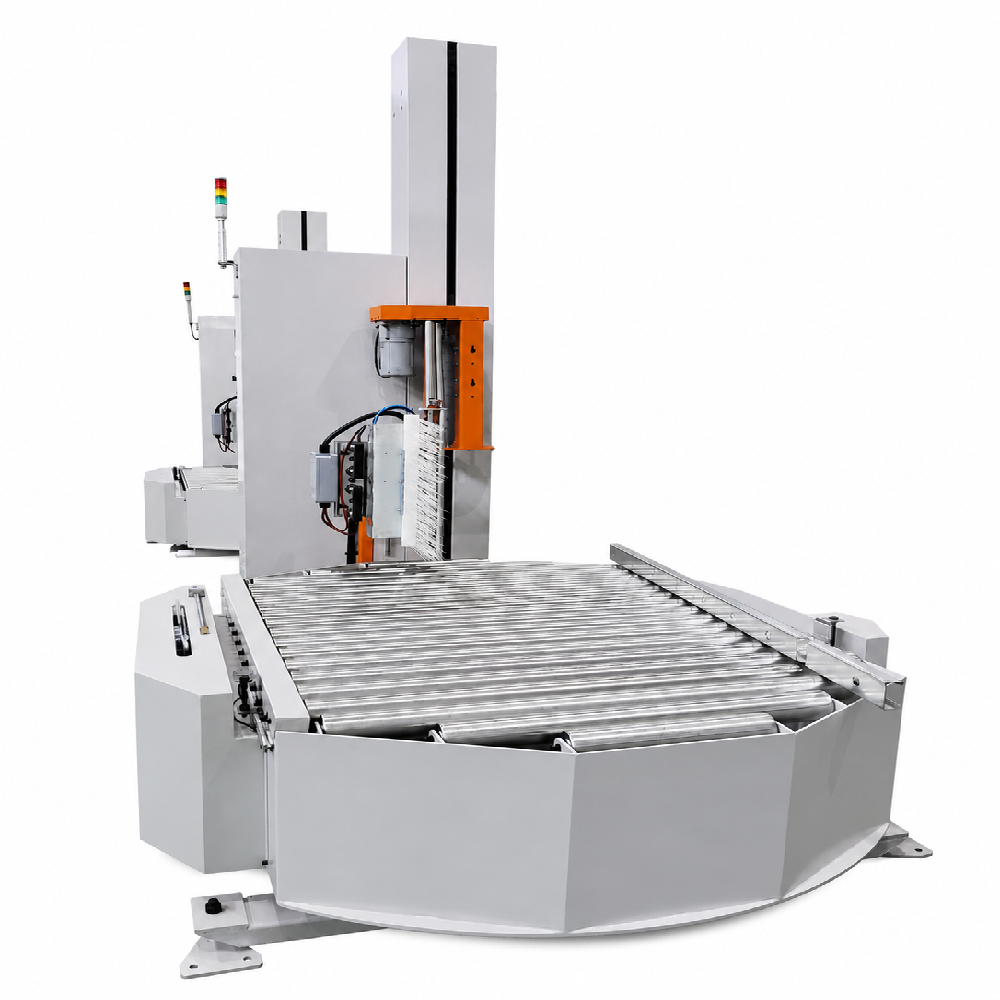

In-Line Automatic Pallet Stretch Wrapping Machine

The HD SYSTEM In-Line Automatic Pallet Stretch Wrapping Machine is designed for fully automated pallet wrapping operations within continuous production and logistics lines.

Pallets are automatically transferred into the wrapping area by conveyor. The system detects the pallet position, performs automatic wrapping, and transfers the wrapped pallet to the downstream conveyor without manual handling.

The machine can be integrated with pallet conveyors, pallet positioning systems, top sheet applicators, pallet dispensers, palletizers, labeling systems, and warehouse automation systems.

It is suitable for factories requiring continuous pallet packaging, reduced operator intervention, and stable wrapping quality.

2. Key Features

• Fully automatic in-line pallet wrapping

• Automatic pallet infeed and outfeed

• No manual pallet positioning required

• Automatic pallet detection and positioning

• Automatic wrapping cycle

• Automatic film tension control

• Automatic film carriage up/down movement

• Adjustable film stretch ratio

• Adjustable wrapping cycles

• Automatic film cutting and sealing*

• PLC-based control system

• HMI touch screen operation

• Recipe management for different products

• Automatic production counting

• Safety fence and safety protection system

• Conveyor line integration

• Suitable for high-throughput packaging lines

• Customized line configuration available

* Depending on machine configuration.

3. Machine Specifications

* Actual specifications depend on machine configuration and customer requirements.

4. Automatic Operation Sequence

The complete wrapping process can be performed automatically without operator intervention.

Step 1. Pallet Infeed

The pallet enters the wrapping line through an automatic conveyor.

Step 2. Pallet Detection

Sensors detect the incoming pallet and confirm its position.

Step 3. Pallet Positioning

The pallet is automatically positioned at the wrapping station using a stopper, centering device, or positioning conveyor.

Step 4. Load Detection

The system detects the load height and confirms the wrapping area.

Step 5. Automatic Film Wrapping

The wrapping unit starts automatically according to the programmed wrapping recipe.

The system controls:

• Wrapping speed

• Film carriage movement

• Film tension

• Film stretch ratio

• Film overlap

• Top and bottom wrapping cycles

Step 6. Film Cutting & Sealing

After the wrapping cycle is completed, the automatic film cutting and sealing unit cuts the film and secures the film tail.

Step 7. Automatic Outfeed

The wrapped pallet is released and transferred to the downstream conveyor.

5. Wrapping Control

The HMI allows operators to configure and manage wrapping parameters.

Typical parameters include:

• Turntable / wrapping arm speed

• Film carriage speed

• Film tension

• Film stretch ratio

• Bottom wrapping cycles

• Top wrapping cycles

• Total wrapping cycles

• Film overlap

• Wrapping height

• Film reinforcement cycles

• Pallet positioning time

• Conveyor speed

Different wrapping recipes can be stored for different pallet and product specifications.

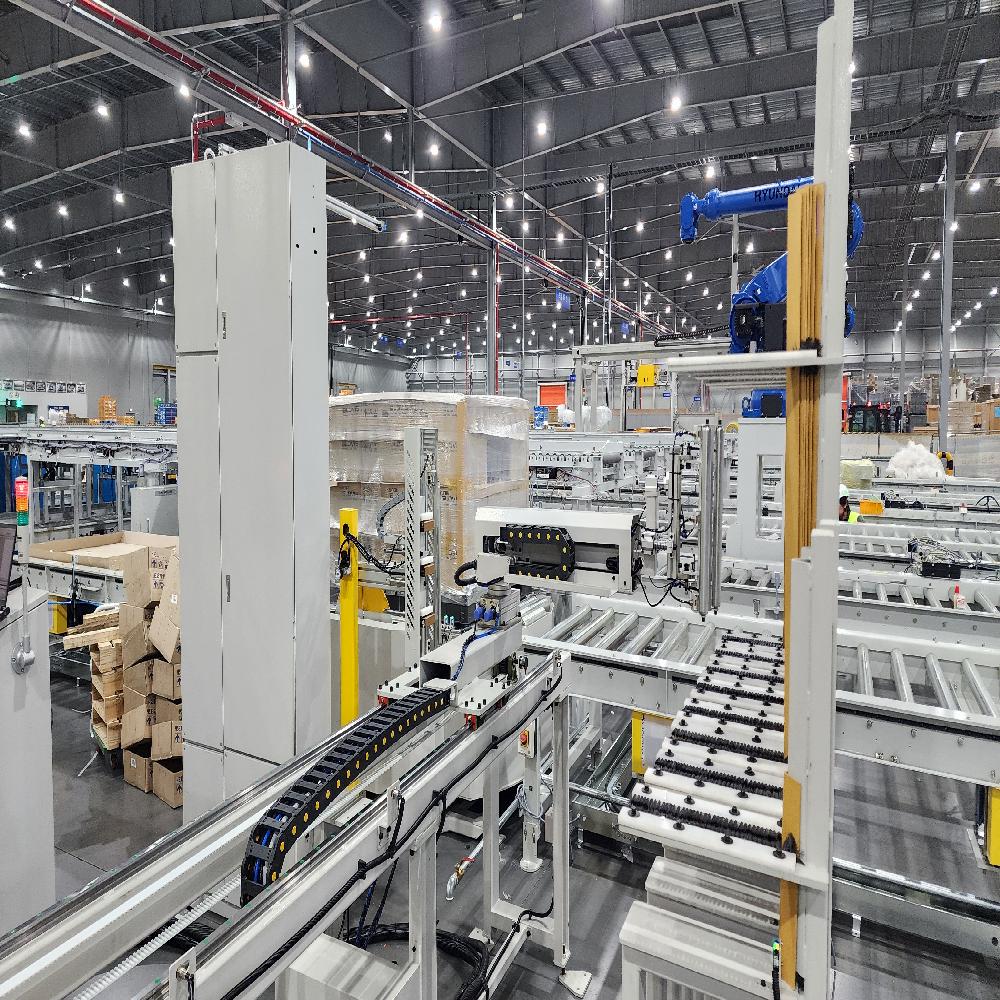

6. Production Line Integration

The In-Line Automatic Pallet Stretch Wrapping Machine can be integrated with various upstream and downstream equipment.

Upstream Equipment

• Palletizer

• Pallet Dispenser

• Pallet Conveyor

• Product Transfer Conveyor

• Pallet Positioning System

• Top Sheet Applicator

Downstream Equipment

• Outfeed Conveyor

• Labeling System

• Pallet Inspection System

• Pallet Warehouse

• Automatic Storage & Retrieval System

• Forklift / AGV / AMR Interface

The machine can communicate with the customer's PLC or factory automation system through digital I/O or industrial communication protocols, depending on the project requirements.

7. Applicable Products

The system can be applied to various palletized products:

• Paper products

• Tissue and paper rolls

• Cartons and boxes

• Food and beverage products

• Pharmaceutical products

• Chemical products

• Automotive parts

• Plastic products

• Industrial materials

• Construction materials

• General palletized products

8. Optional Features

• Automatic Film Cutting & Sealing

• Automatic Film Clamping

• Power Pre-Stretch Film Carriage

• Dual Film Carriage

• Automatic Film Replacement

• Top Sheet Applicator

• Top Press Unit

• Automatic Pallet Positioning

• Automatic Centering Device

• Pallet Stopper

• Barcode Scanner

• Product Size Detection

• Laser Measurement Sensor

• Safety Light Curtain

• Safety Fence

• HMI Touch Screen

• Recipe Management

• Production Monitoring

• Remote Monitoring System

• MES / ERP Interface

• Ethernet / Industrial Communication

• AGV / AMR Interface

9. Advantages

Fully Automatic Operation

Pallet transfer, positioning, wrapping, film cutting, and discharge can be performed automatically.

Continuous Production

The machine is designed for integration into continuous production lines, minimizing manual handling between processes.

Stable Wrapping Quality

Automatic control of film tension, stretch ratio, wrapping speed, and wrapping cycles provides consistent packaging quality.

Flexible Product Handling

Different pallet sizes and product dimensions can be managed through recipe-based operation and automatic detection systems.

Easy Line Integration

The wrapping system can be connected with conveyors, palletizers, top sheet systems, warehouse systems, AGVs, and other factory automation equipment.

Customized Automation

The entire system can be engineered according to the customer's production capacity, pallet specifications, product dimensions, factory layout, and required automation level.

10. Manufacturer

HD SYSTEM

HD SYSTEM specializes in the design and manufacture of pallet stretch wrapping machines and automated pallet packaging systems.

Our In-Line Automatic Pallet Stretch Wrapping Systems can be customized and integrated into complete automated packaging lines according to customer requirements.
