Auto Low turntable wrapping machine

1. Product Overview

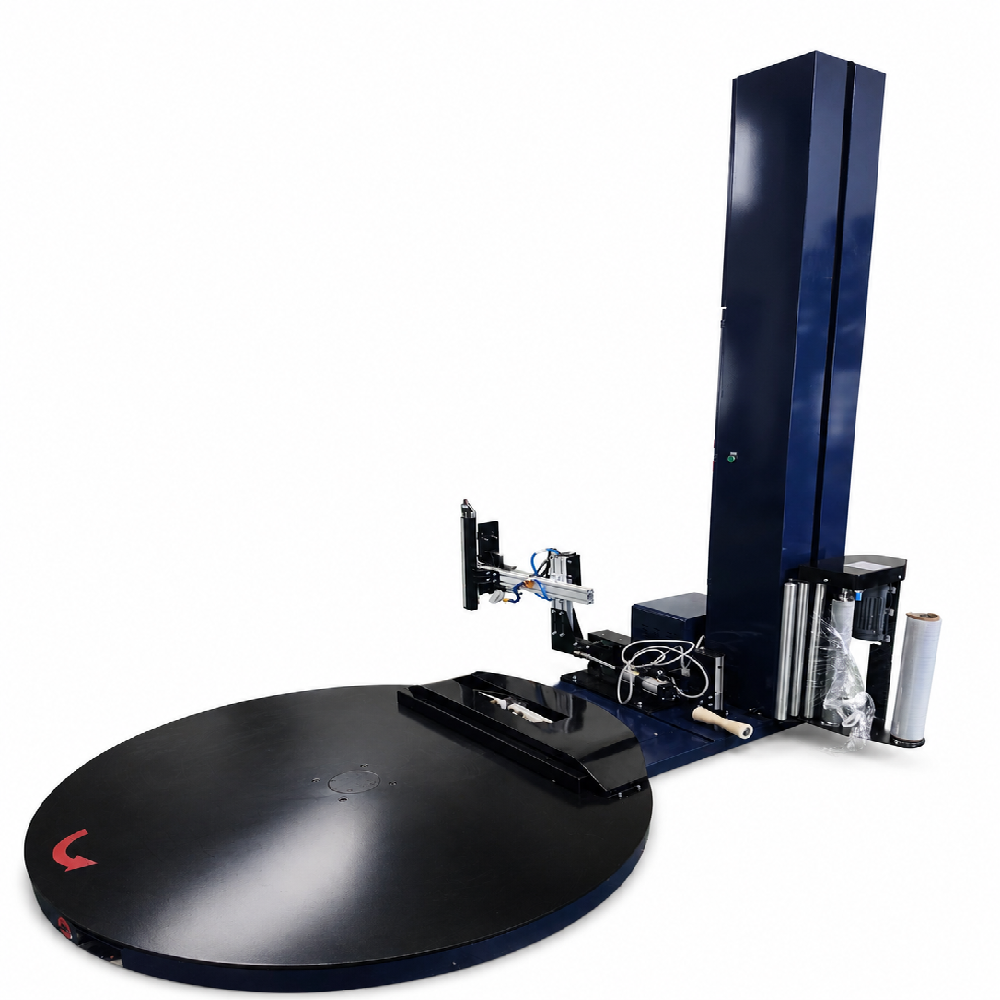

Automatic Low-Profile Pallet Stretch Wrapping Machine

The HD SYSTEM Automatic Low turntable Pallet Stretch Wrapping Machine is designed for efficient and stable wrapping of palletized products while providing easy pallet loading and unloading.

The low-profile turntable minimizes the height difference between the floor and the wrapping platform, allowing pallets to be loaded using a pallet jack or forklift without requiring a separate loading ramp.

The machine automatically performs the wrapping cycle after the pallet is positioned, including film tension control and film carriage movement.

It is suitable for industrial packaging applications where easy pallet access, space efficiency, and stable wrapping quality are required.

2. Key Features

• Low turntable design

• Easy pallet loading and unloading

• Suitable for pallet jack and forklift operation

• Automatic wrapping cycle (auto cutting & welding)

• Automatic film carriage up/down movement

• Adjustable turntable rotation speed

• Adjustable film tension

• Adjustable wrapping cycles

• Automatic load height detection

• Stable and uniform stretch film wrapping

• Soft Start & Stop function

• Easy-to-use control system

• Safety protection system

• Suitable for various pallet sizes and product dimensions

• Customized design available

3. Machine Specifications

* Actual specifications depend on the selected machine configuration and customer requirements.

4. Low-Profile Design

The low-profile turntable is designed to reduce the loading height of the wrapping machine.

This design provides several advantages:

• Easy pallet loading with a hand pallet truck

• Easy pallet loading with a forklift

• Reduced requirement for loading ramps

• Improved operator accessibility

• Suitable for facilities with limited installation space

• Convenient installation on existing production floors

The turntable height and structural configuration can be customized according to the customer's pallet size and loading method.

5. Automatic Wrapping Operation

After the pallet is positioned on the turntable, the operator starts the wrapping cycle.

The machine automatically controls:

1. Pallet position detection

2. Load height detection

3. Turntable rotation

4. Film carriage movement

5. Film tension

6. Film wrapping cycles

7. Film carriage return

8. Wrapping completion

Additional automatic functions such as film cutting, film clamping, and film sealing can be incorporated depending on the machine configuration.

6. Wrapping Parameters

The wrapping parameters can be adjusted according to the product and packaging requirements.

• Turntable rotation speed

• Film carriage lifting speed

• Film tension

• Film stretch ratio

• Bottom wrapping cycles

• Top wrapping cycles

• Total wrapping cycles

• Film overlap

• Wrapping height

• Wrapping start/end position

Different wrapping parameters can be configured for different products when an HMI recipe management system is applied.

7. Applicable Products

The machine is suitable for wrapping various palletized products, including:

• Paper products

• Tissue and paper rolls

• Cartons and boxes

• Food and beverage products

• Chemical products

• Pharmaceutical products

• Electronic products

• Automotive parts

• Plastic products

• Industrial materials

• Construction materials

• General palletized products

8. Optional Features

The following options are available depending on the customer's requirements:

• Power Pre-Stretch Film Carriage

• Automatic Film Cutting & Sealing

• Automatic Film Clamping

• Top Press Unit

• Pallet Positioning System

• Automatic Pallet Stopper

• Safety Fence

• Safety Light Curtain

• HMI Touch Screen

• PLC Control System

• Recipe Management

• Remote Monitoring System

• Automatic Infeed Conveyor

• Automatic Outfeed Conveyor

• Top Sheet Applicator

• Corner Protection Applicator

• Barcode / Product Data Interface

• Production Counter

9. Advantages

Low Loading Height

The low-profile turntable allows easier pallet loading and unloading without a separate ramp in suitable installation conditions.

Automatic Operation

Once the pallet is correctly positioned, the machine automatically performs the programmed wrapping cycle.

Consistent Wrapping Quality

Controlled film tension, rotation speed, and film carriage movement provide stable wrapping performance.

Flexible Configuration

The machine can be configured according to pallet dimensions, load weight, product height, film specifications, and required production capacity.

Easy Integration

The low-profile wrapper can be integrated with conveyors, pallet positioning systems, top sheet applicators, and other automated packaging equipment.

10. Manufacturer

HD SYSTEM

HD SYSTEM specializes in pallet stretch wrapping machines and automated packaging systems.

Our machines can be customized according to pallet dimensions, product characteristics, production capacity, film specifications, and factory layout.
