Semi auto wrapping machine

1. Product Overview

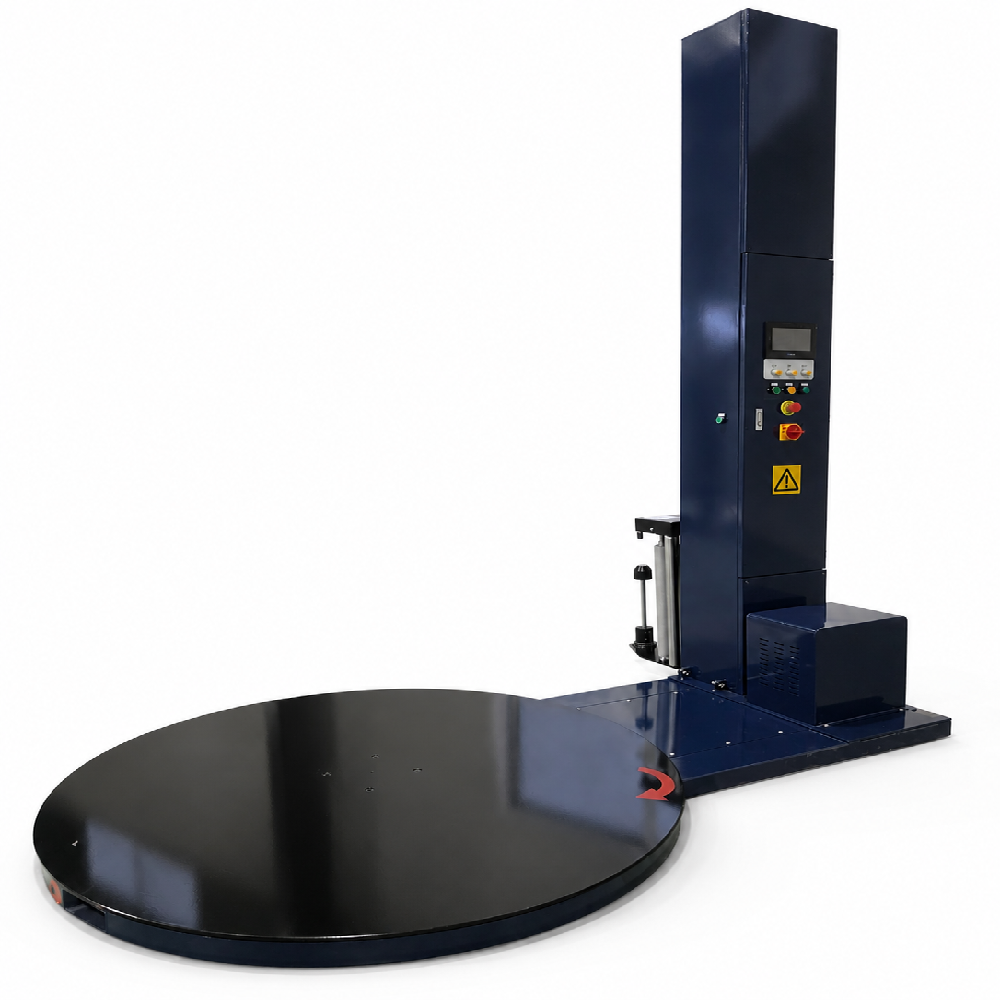

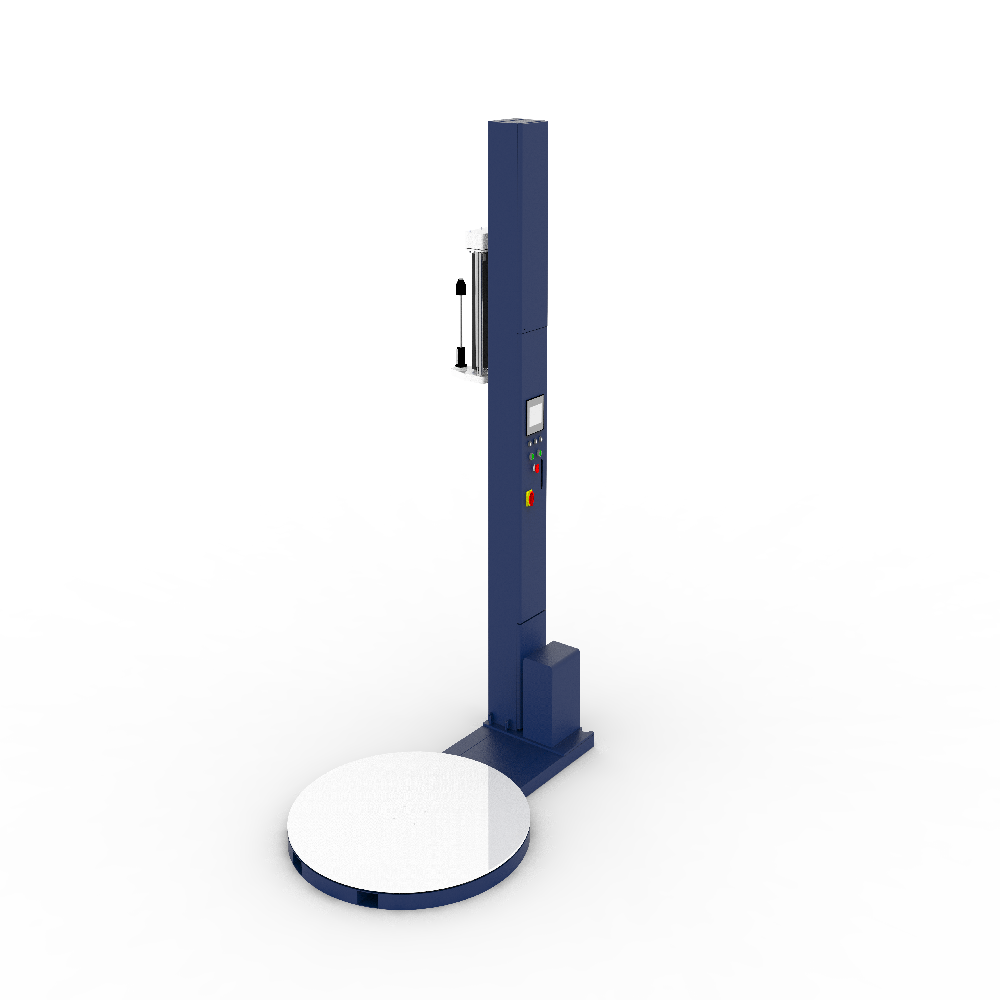

Semi-Automatic Pallet Stretch Wrapping Machine

The HD SYSTEM Semi-Automatic Pallet Stretch Wrapping Machine is designed for stable and efficient wrapping of palletized products using stretch film.

The operator places the pallet on the turntable, attaches the stretch film to the load, and starts the wrapping cycle. The machine automatically controls the turntable rotation and film carriage movement to provide consistent and uniform wrapping.

It is suitable for a wide range of industrial packaging applications and can be customized according to pallet size, product dimensions, load weight, and required wrapping conditions.

2. Key Features

• Semi-automatic stretch film wrapping operation

• Stable and uniform pallet wrapping

• Adjustable turntable rotation speed

• Adjustable film carriage lifting speed

• Adjustable film tension

• Adjustable wrapping cycle and number of film rotations

• Automatic film carriage up/down movement

• Soft Start & Stop for stable operation

• Photoelectric sensor for load height detection

• Emergency stop and safety protection system

• Easy operation through control panel

• Suitable for various pallet sizes and load dimensions

• Customized specifications available according to customer requirements

3. Machine Specifications

* Actual specifications can be customized according to customer requirements and machine configuration.

4. Wrapping Functions

The wrapping parameters can be adjusted according to the characteristics of the product.

• Bottom wrapping cycles

• Top wrapping cycles

• Total wrapping cycles

• Film carriage speed

• Turntable rotation speed

• Film tension

• Film overlap

• Film stretch ratio

• Wrapping start/end position

These parameters allow the operator to optimize film consumption and wrapping stability for different product types.

5. Applicable Products

The machine can be applied to various palletized products, including:

• General industrial products

• Paper products

• Cartons and boxes

• Food and beverage products

• Chemical products

• Pharmaceutical products

• Electronic products

• Automotive parts

• Plastic products

• Construction materials

• Other palletized products

6. Advantages

Stable Wrapping Quality

The turntable and film carriage are controlled independently to provide consistent film tension and wrapping quality.

Easy Operation

The machine is designed for simple operation, allowing operators to easily start and control the wrapping process.

Flexible Wrapping Parameters

Wrapping speed, film tension, wrapping cycles, and other parameters can be adjusted according to product conditions.

Reduced Film Consumption

Adjustable film tension and stretch conditions help reduce unnecessary stretch film consumption.

Customized Design

Machine dimensions, turntable size, load capacity, film carriage specifications, and control functions can be customized according to the customer's pallet and product specifications.

7. Optional Features

The following options can be added depending on the application:

• Powered Pre-Stretch Film Carriage

• Automatic Film Cutting & Sealing

• Automatic Film Clamping

• Top Press Unit

• Pallet Positioning System

• Pallet Stopper

• Safety Fence

• Safety Light Curtain

• Remote Control

• HMI Touch Screen

• Conveyor Integration

• Automatic Infeed / Outfeed Conveyor

• Top Sheet Application System

• Corner Protection Applicator

• Customized PLC Control System

8. Recommended Applications

The Semi-Automatic Pallet Stretch Wrapping Machine is suitable for companies that require improved wrapping consistency and productivity while maintaining operator involvement in pallet loading and unloading.

It can also be integrated with conveyors and other packaging equipment to create a semi-automatic or fully automatic pallet packaging line.

9. Manufacturer

HD SYSTEM

HD SYSTEM specializes in the design and manufacture of pallet wrapping machines and automated packaging systems.

Our equipment can be customized according to pallet dimensions, product characteristics, production capacity, and factory layout.
