FIBRILLATED PP STRING WOUND FILTER CARTRIDGES

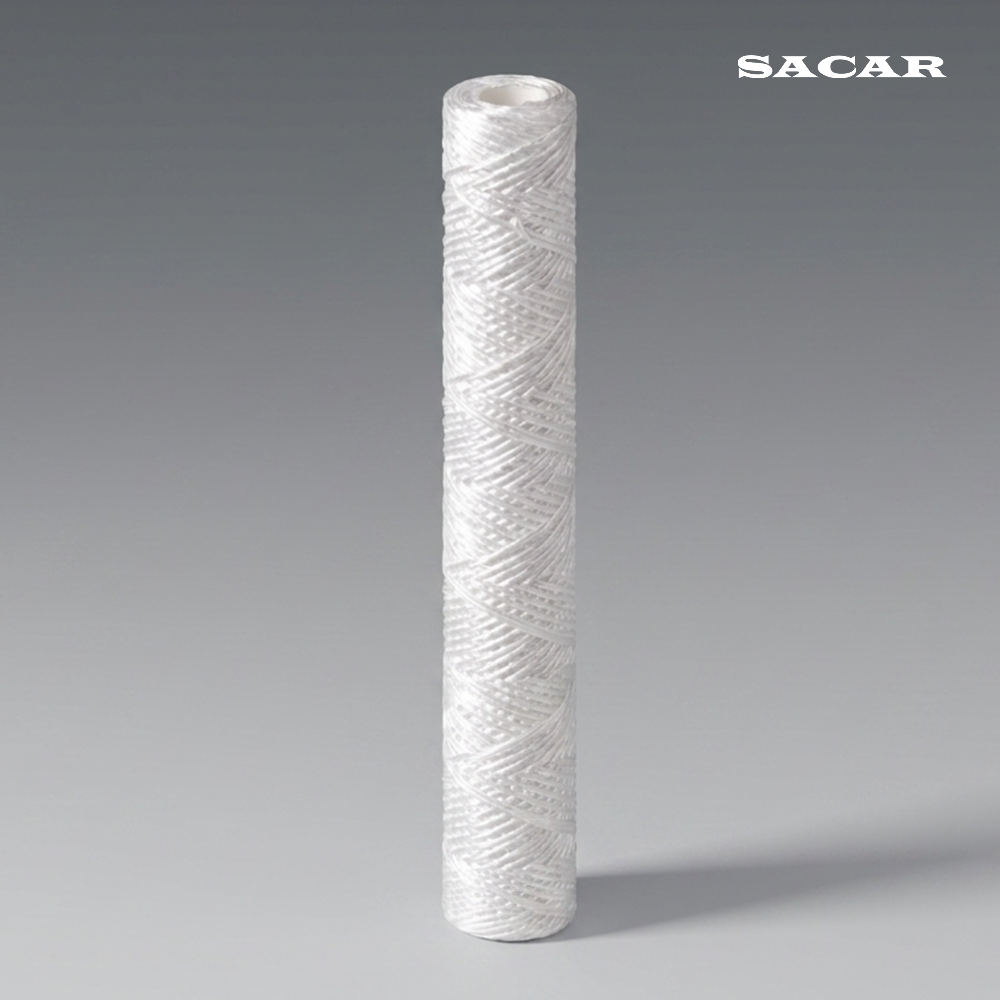

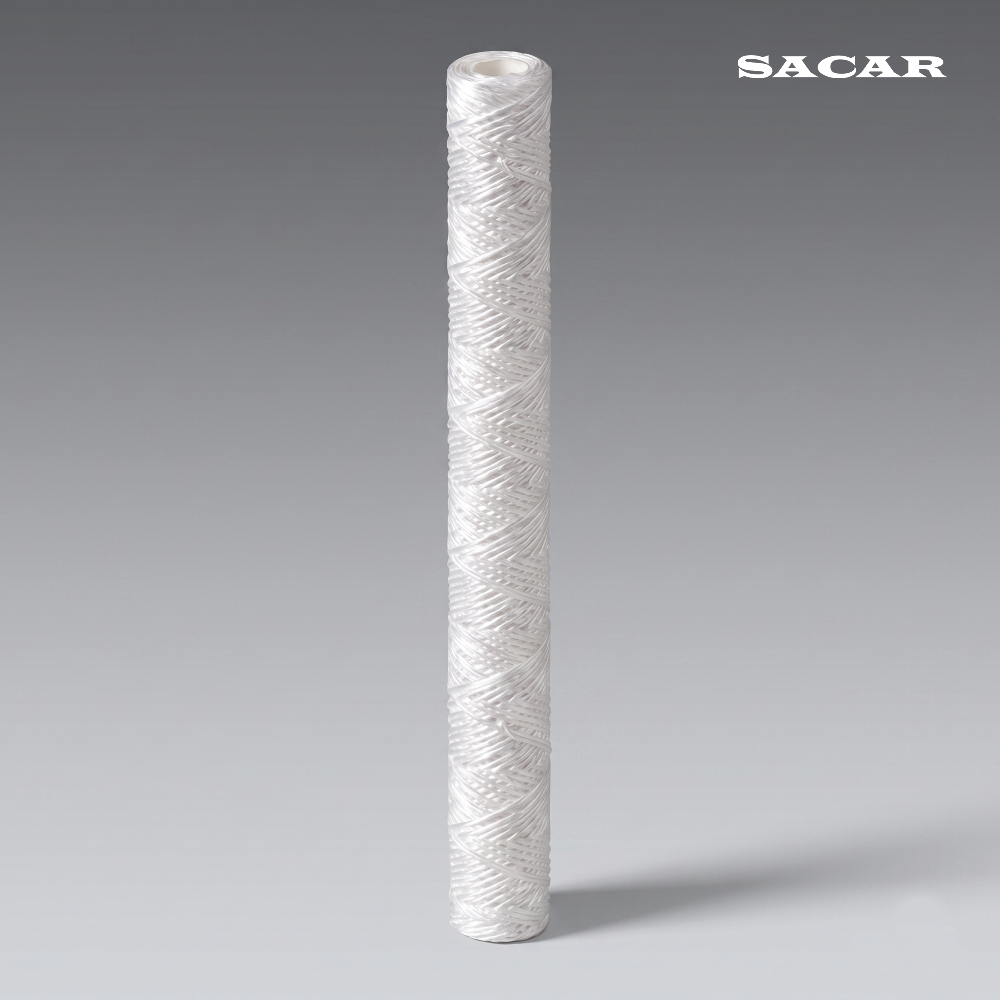

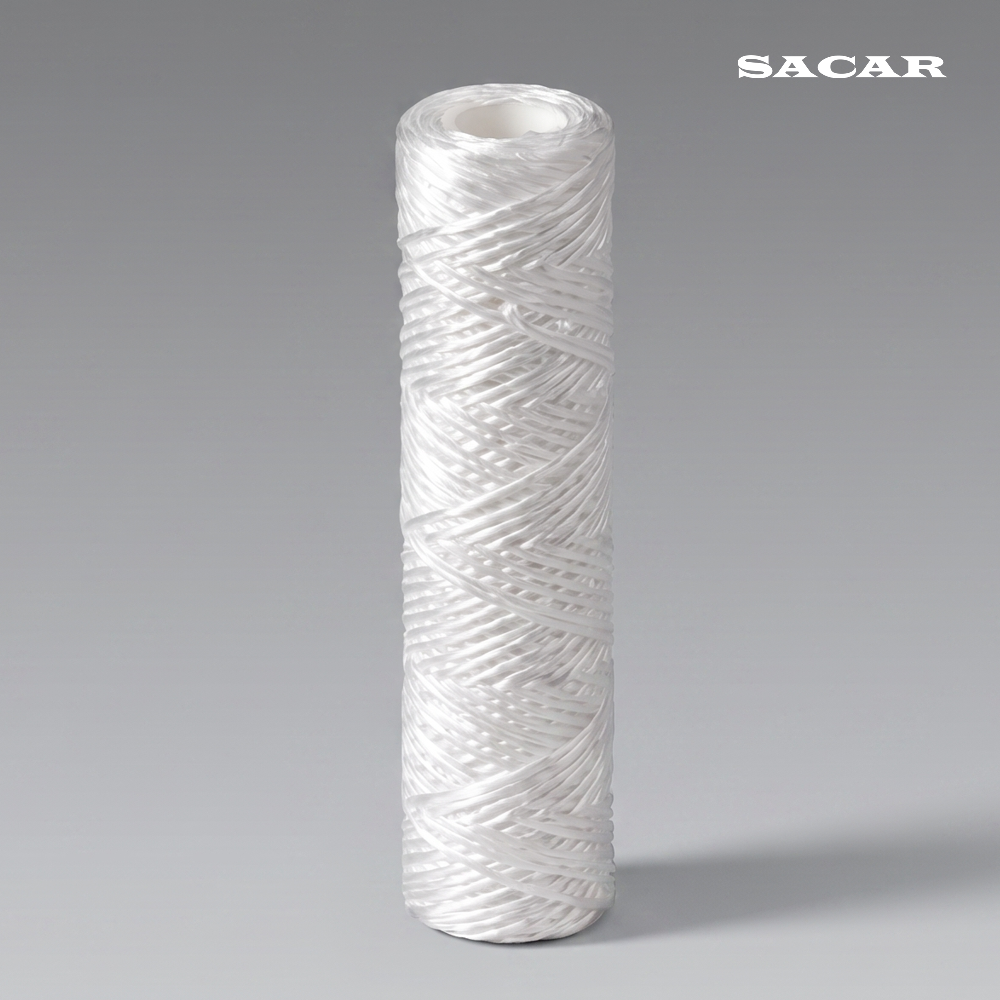

Fibrillated PP String Wound Filter Cartirdges, FPPSDW Series

[Description]

The Fibrillated PP String Wound Filter Cartridge is wound using fibrillated (split-film) polypropylene film yarn. Unlike short spun staple fibers, fibrillated yarns consist of continuous film tapes split into interconnected mesh networks. This structure virtually eliminates fiber shedding or media migration into pure fluids and offers superior tensile strength under pump pressure surges or flow fluctuations.

[Features]

•  Fibrillated Split-Film Yarn: Continuous split-film tape structure completely eliminates loose short fibers.

•  Zero Fiber Shedding: Prevents media migration, ensuring extreme fluid purity in critical plating lines.

•  High Tensile Fiber Strength: Highly resistant to fiber snapping or deformation under strong pump surges.

•  Suppressed Chemical Foaming: Minimizes fluid foaming in circuit board plating baths and surface treatments.

•  High Chemical Inertness: 100% pure PP construction provides complete resistance to strong acids and alkalis.

[Specifications]

•  Material: Fibrillated Polypropylene

•  Length: 250, 500, 750, 1000 mm

•  Core: Polypropylene

•  Rating: 0.5 ~ 100 micron

•  ID/OD: Ø 30 / 62 mm

•  Temperature: Max. 60 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
