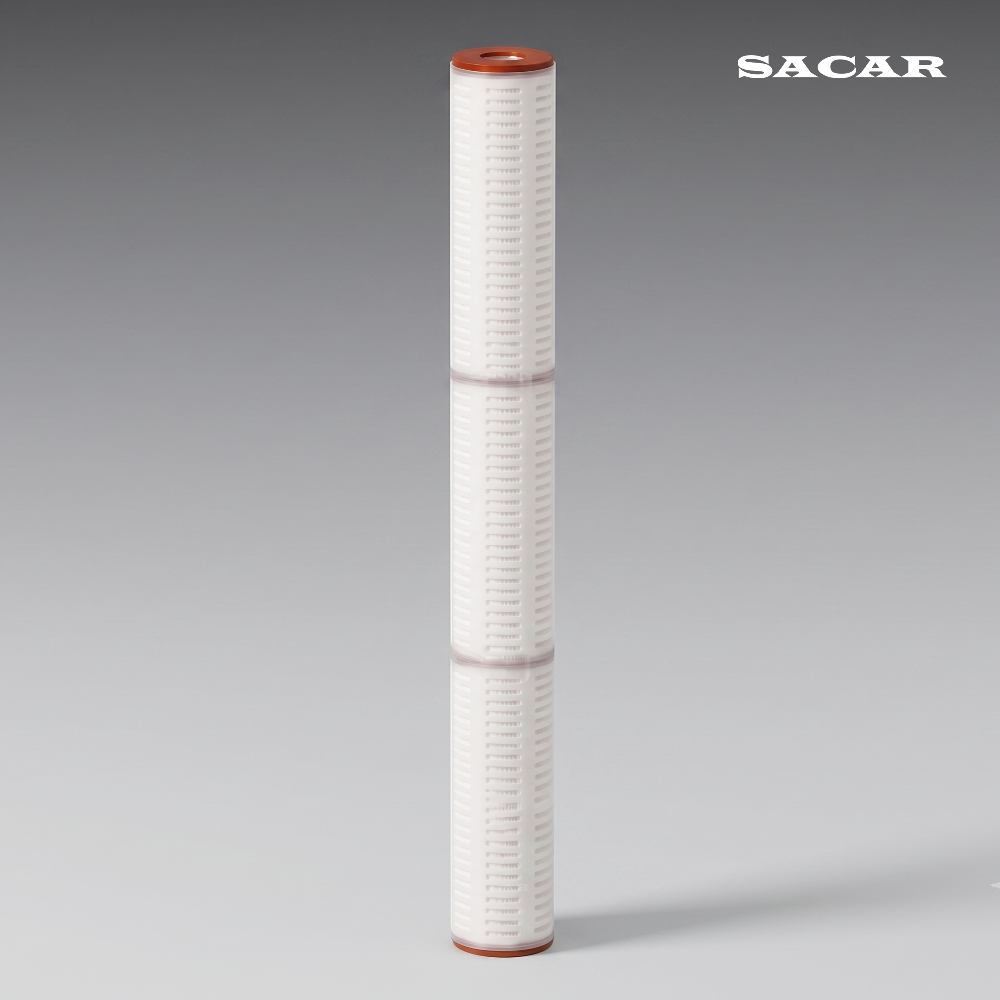

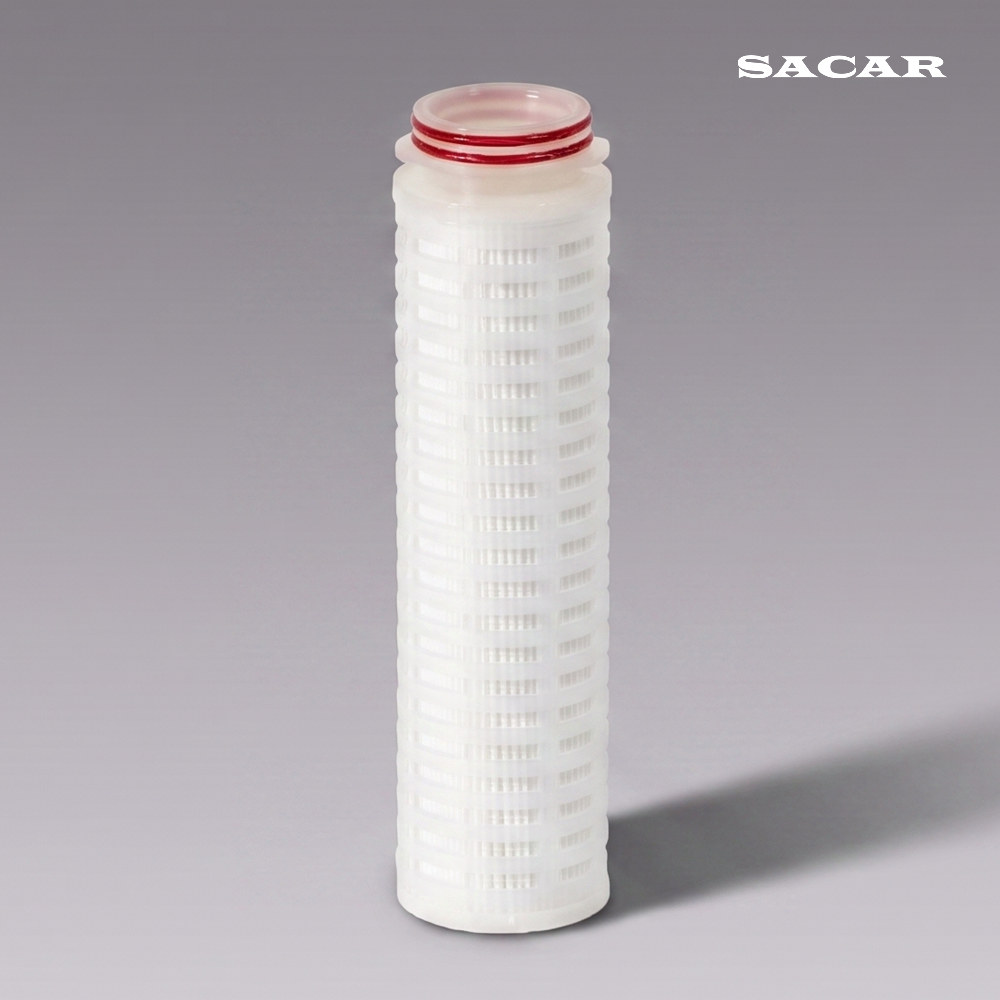

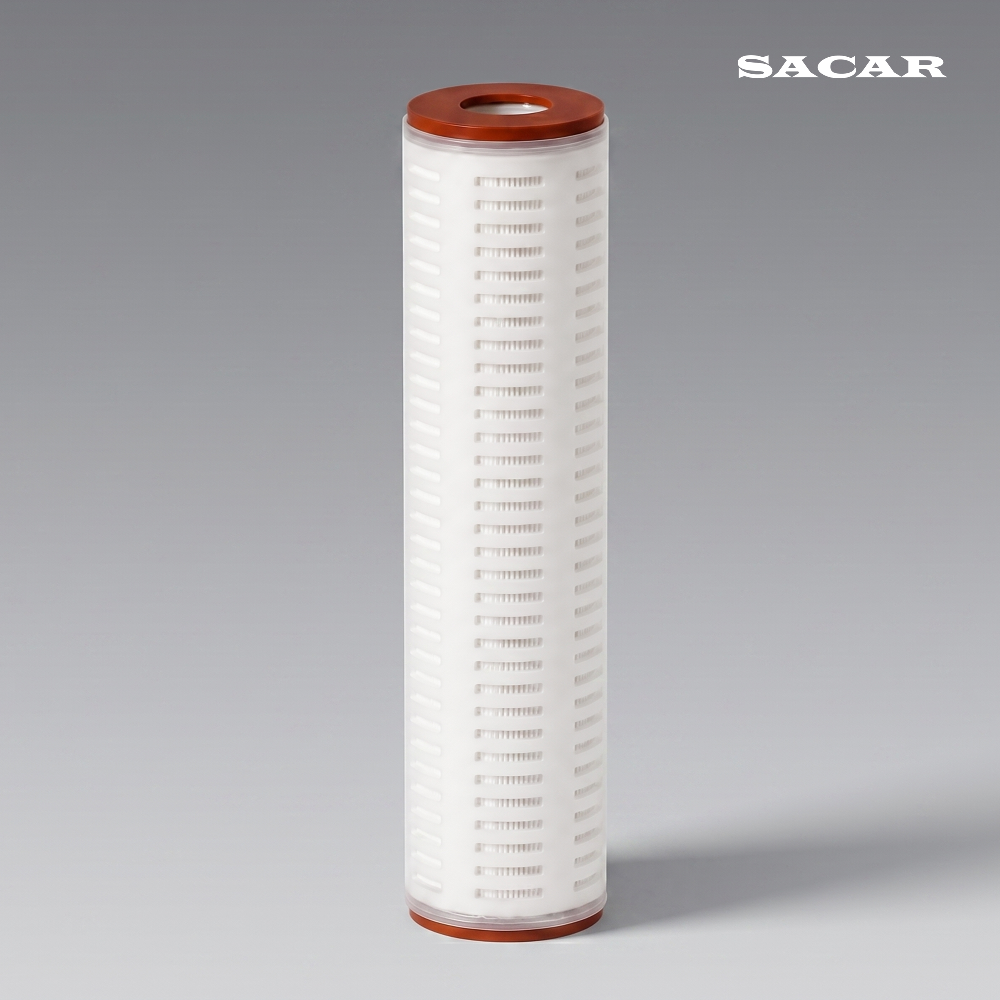

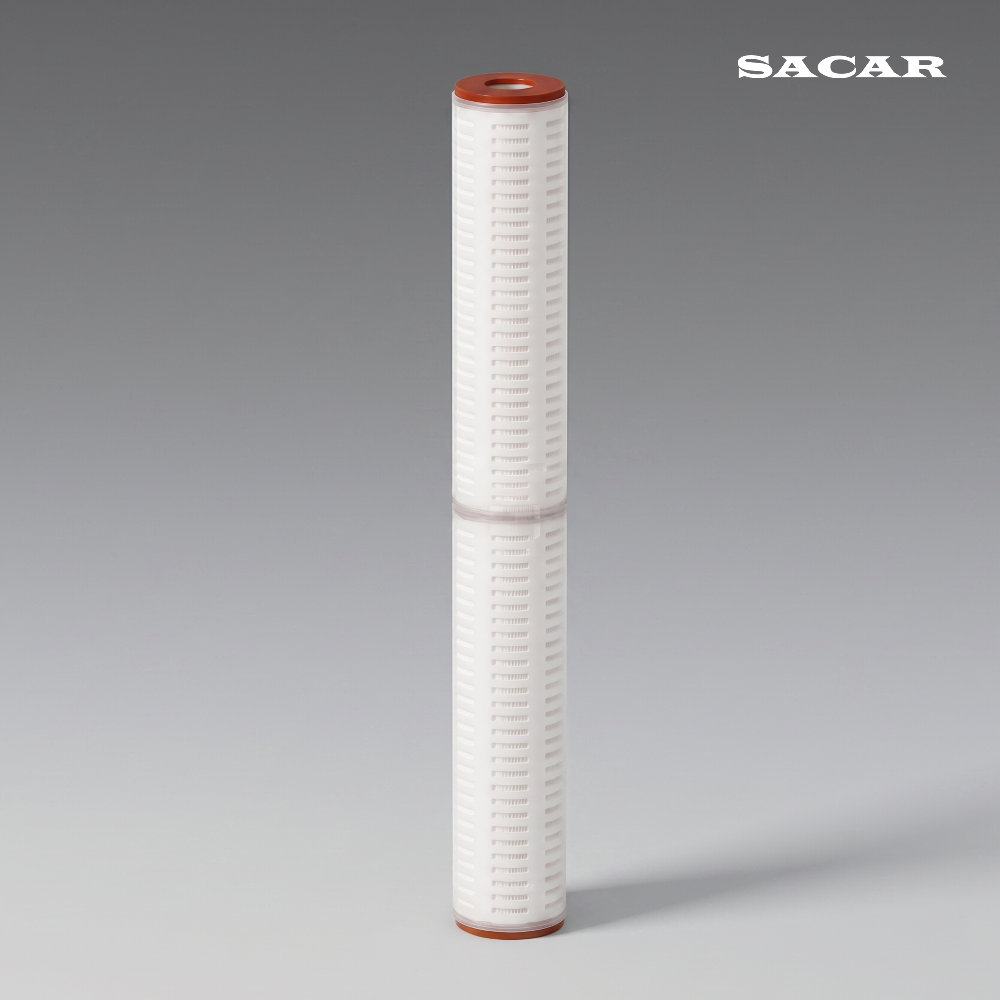

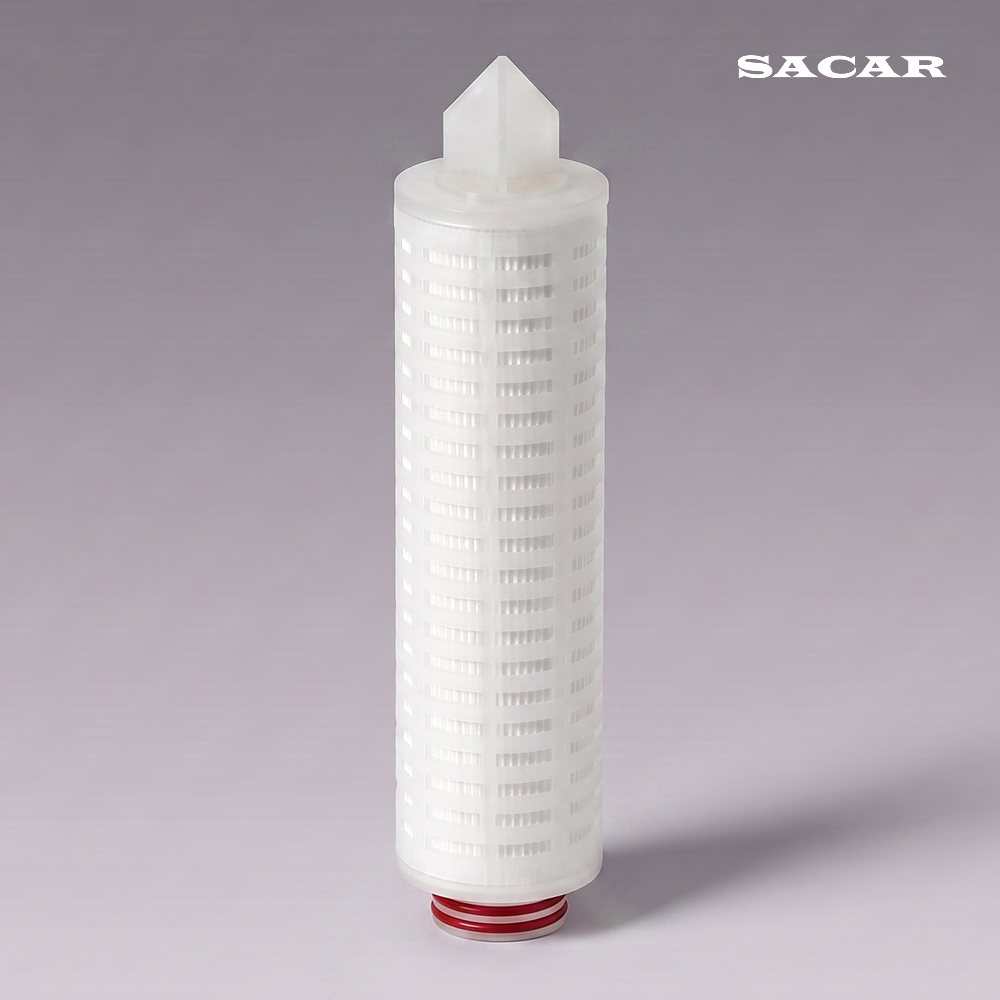

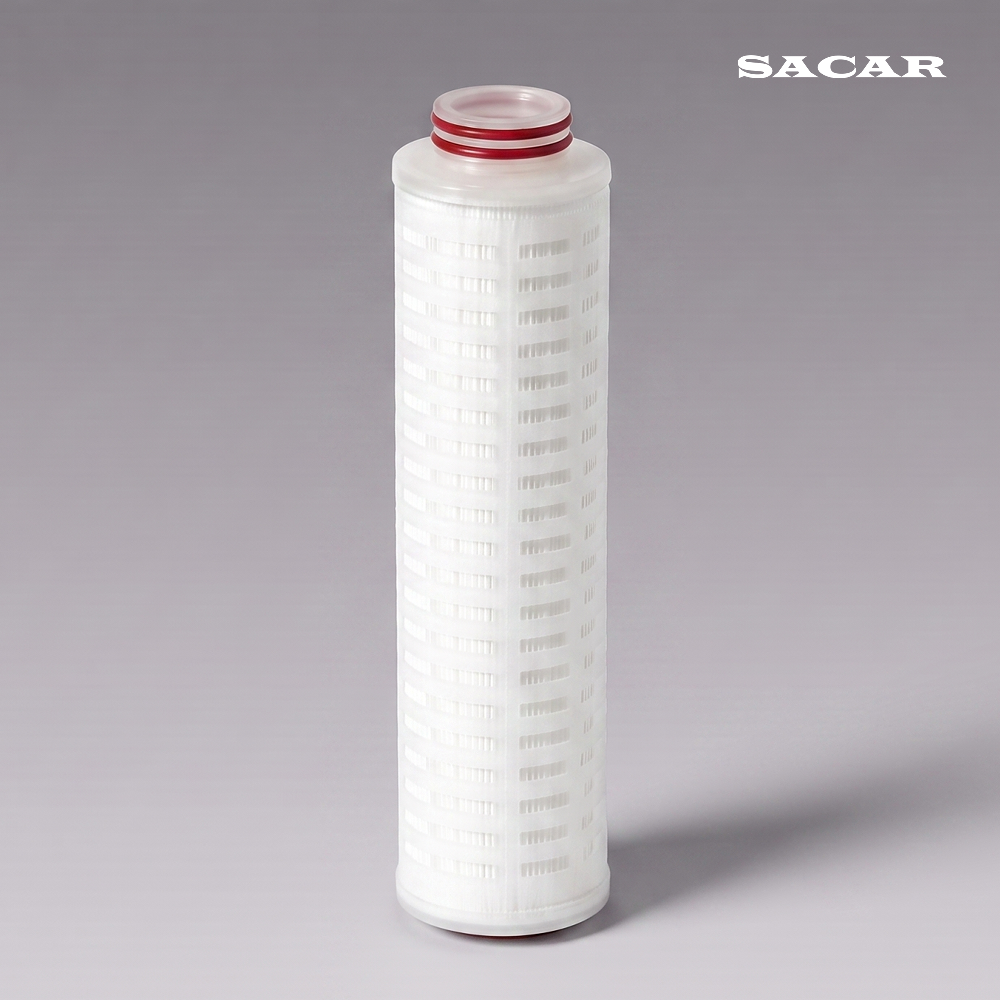

PP PLEATED FILTER CARTRIDGES

PP Pleated Filter Cartirdges, SPP Series

[Description]

The PP Pleated Filter Cartridge is an absolute-rated micro-filtration element constructed with pleated polypropylene membrane media. By folding the filter media, it maximizes the effective filtration area up to 6–8 times compared to standard cylindrical elements. This design yields exceptionally low pressure drop, high fluid throughput, strict micron retention, and prolonged service life, making it the industry standard for bio-pharmaceuticals, high-purity water, electronics, and food processing.

[Features]

•  Maximized Surface Area: Pleated design dramatically expands effective filtration area for high flow.

•  Absolute Particle Retention: Delivers precise removal efficiency (up to 99.9%) from 0.2 µm to 50 µm.

•  Ultra-Low Differential Pressure: High membrane permeability minimizes operational pumping energy.

•  100% Thermal Fusion: Completely thermally welded without any chemical adhesives or binders.

•  Long Operational Lifespan: Expanded area reduces changeout frequency and downtime costs.

[Specifications]

•  Material: Polypropylene

•  Length: 250, 500, 750, 1000 mm

•  Core: Polypropylene

•  Rating: 0.2 ~ 50 micron

•  ID/OD: Ø 30 / 69 mm

•  Temperature: Max. 80 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
