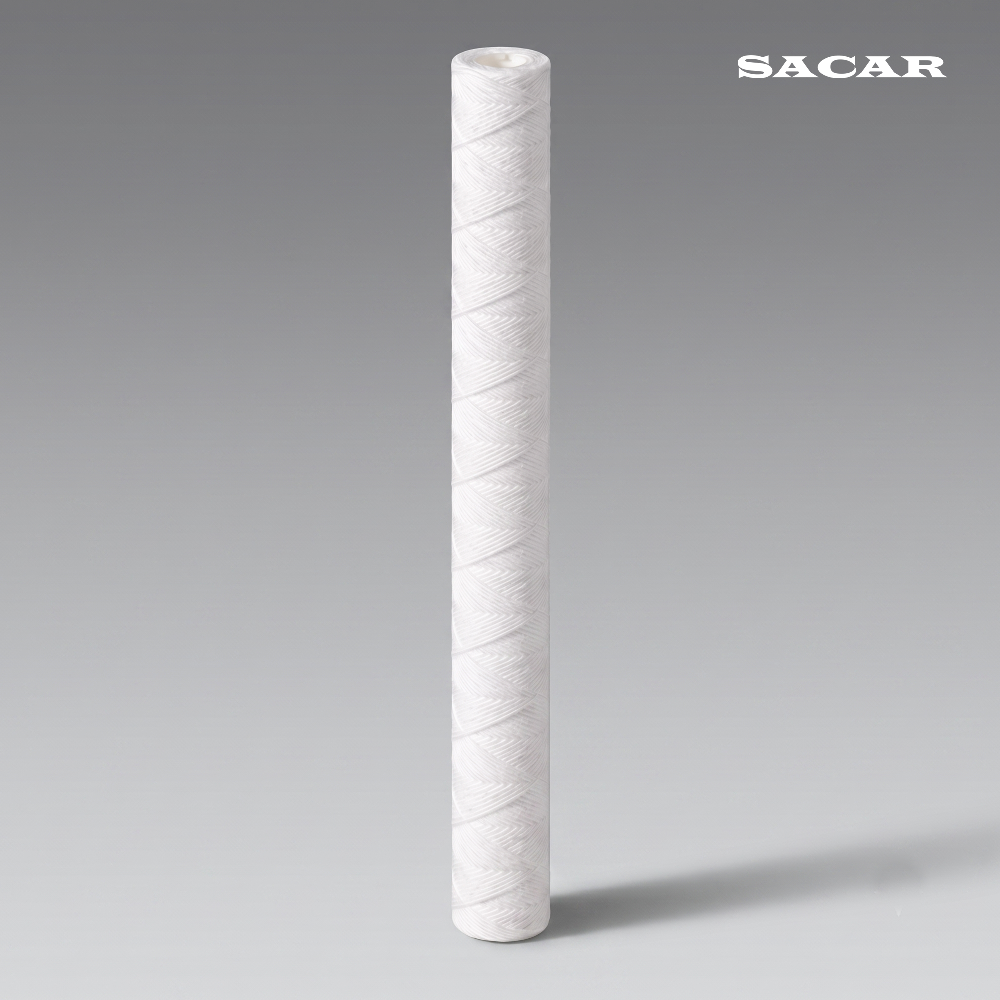

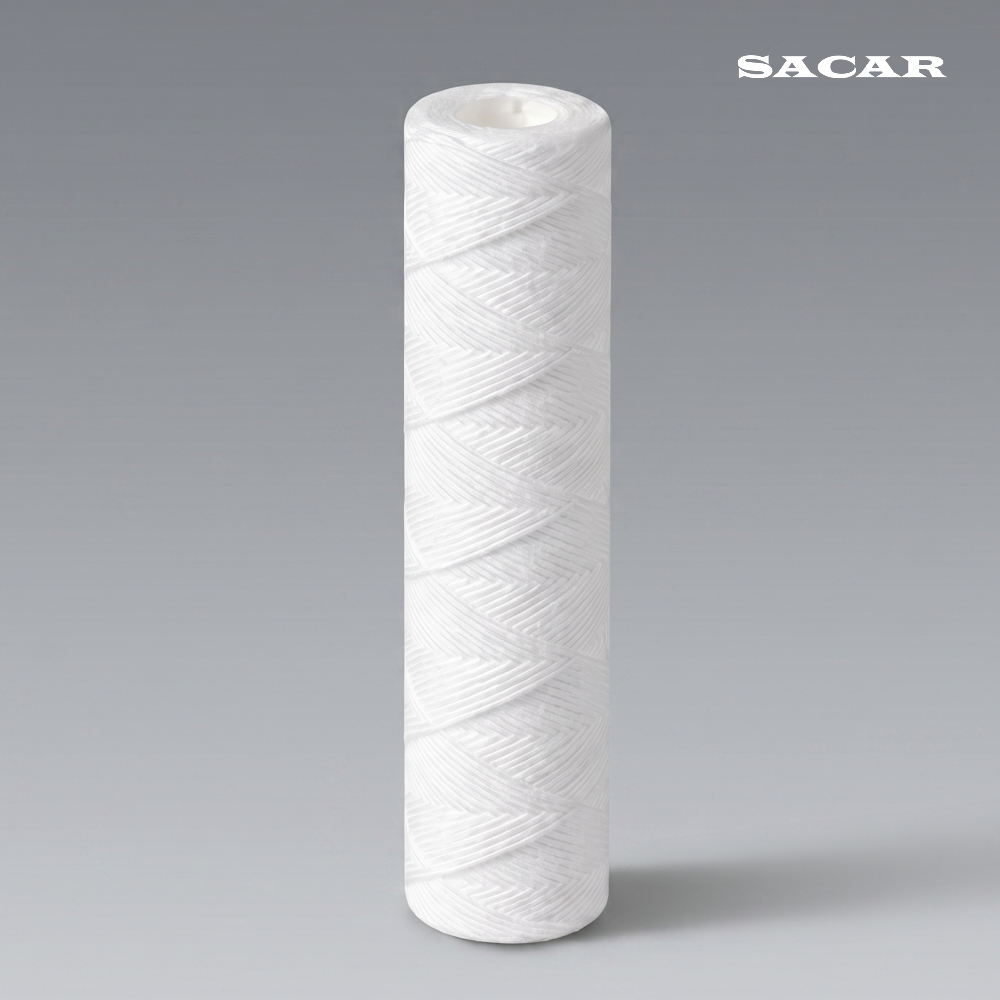

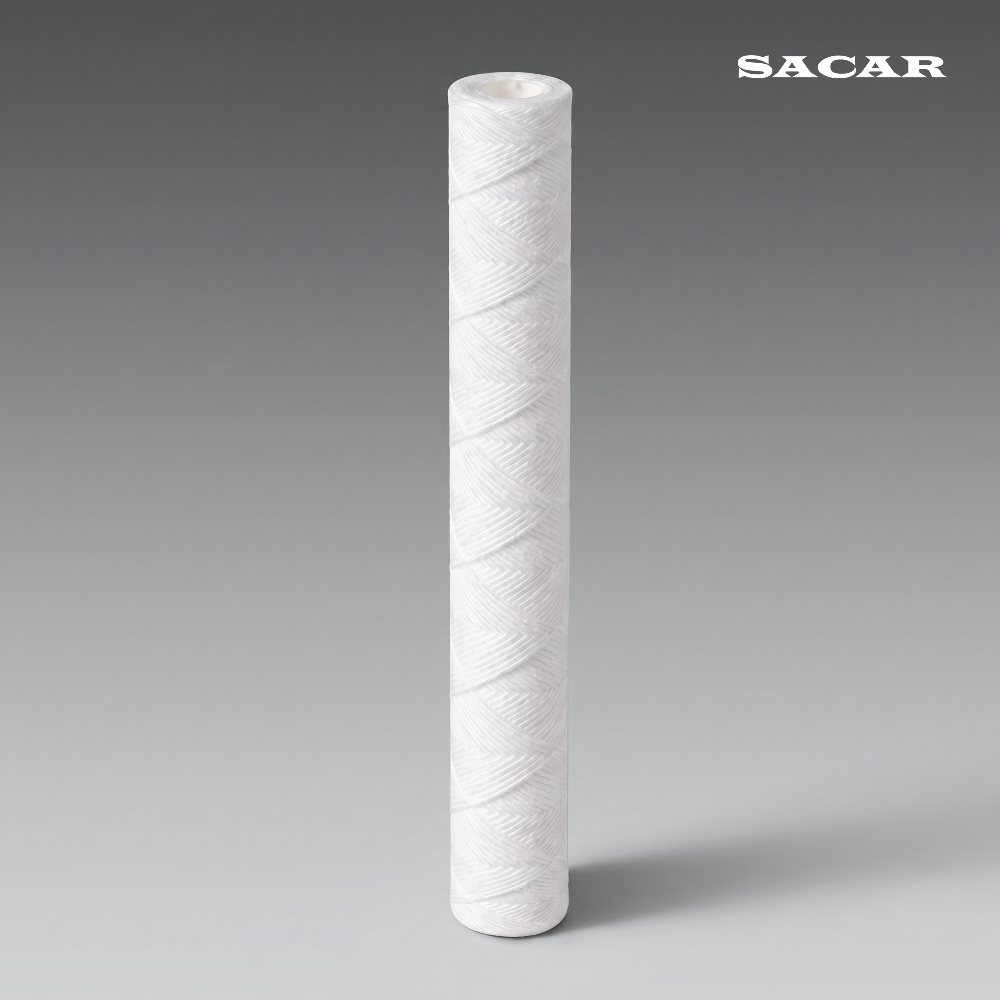

PP STRING WOUND FILTER CARTRIDGES

PP String Wound Filter Cartirdges, SDW Series

[Description]

The PP String Wound Filter Cartridge is manufactured by precision-winding polypropylene yarn around a rigid internal core. This computer-controlled winding pattern forms diamond-shaped openings that taper inward, providing true gradient depth filtration. It is specifically optimized for fluid handling with high viscosity, high particle loading, and elevated turbidity. Offering remarkable structural stability and outstanding cost efficiency, it is widely utilized for aggressive chemicals and primary water filtration stages.

[Features]

•  Computerized Precision Winding: Delivers uniform pore geometry and strong structural resistance.

•  True Depth Filtration: Diamond-pattern yarn density progression traps particulates step-by-step.

•  Heavy Sediment Tolerance: Efficiently handles high turbidity and thick suspended particle concentrations.

•  High Chemical Resistance: Pure PP yarn and core resist aggressive acids and alkalis.

•  Economical Pre-Filtration Solution: Minimizes operational expenses in primary industrial fluid treatments.

[Specifications]

•  Material: Polypropylene

•  Length: 250, 500, 750, 1000 mm

•  Core: Polypropylene

•  Rating: 0.5 ~ 100 micron

•  ID/OD: Ø 30 / 62 mm

•  Temperature: Max. 80 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
