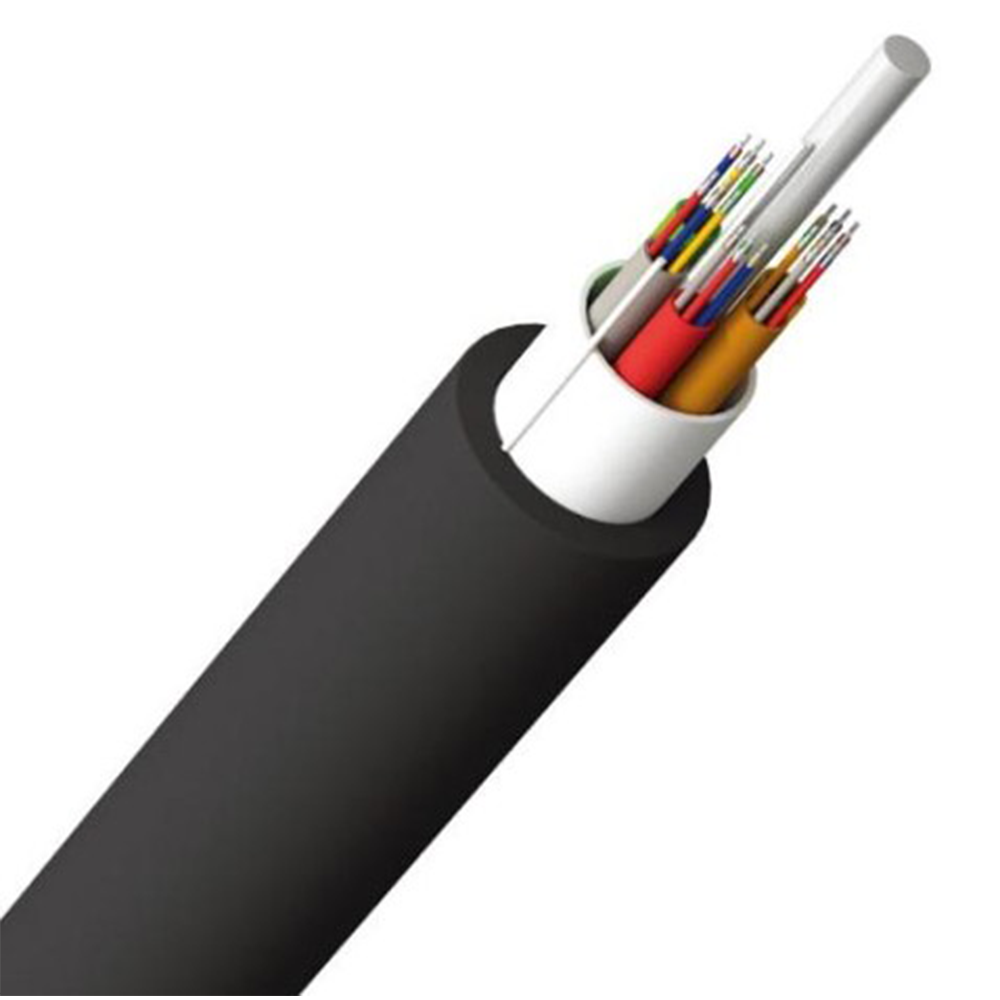

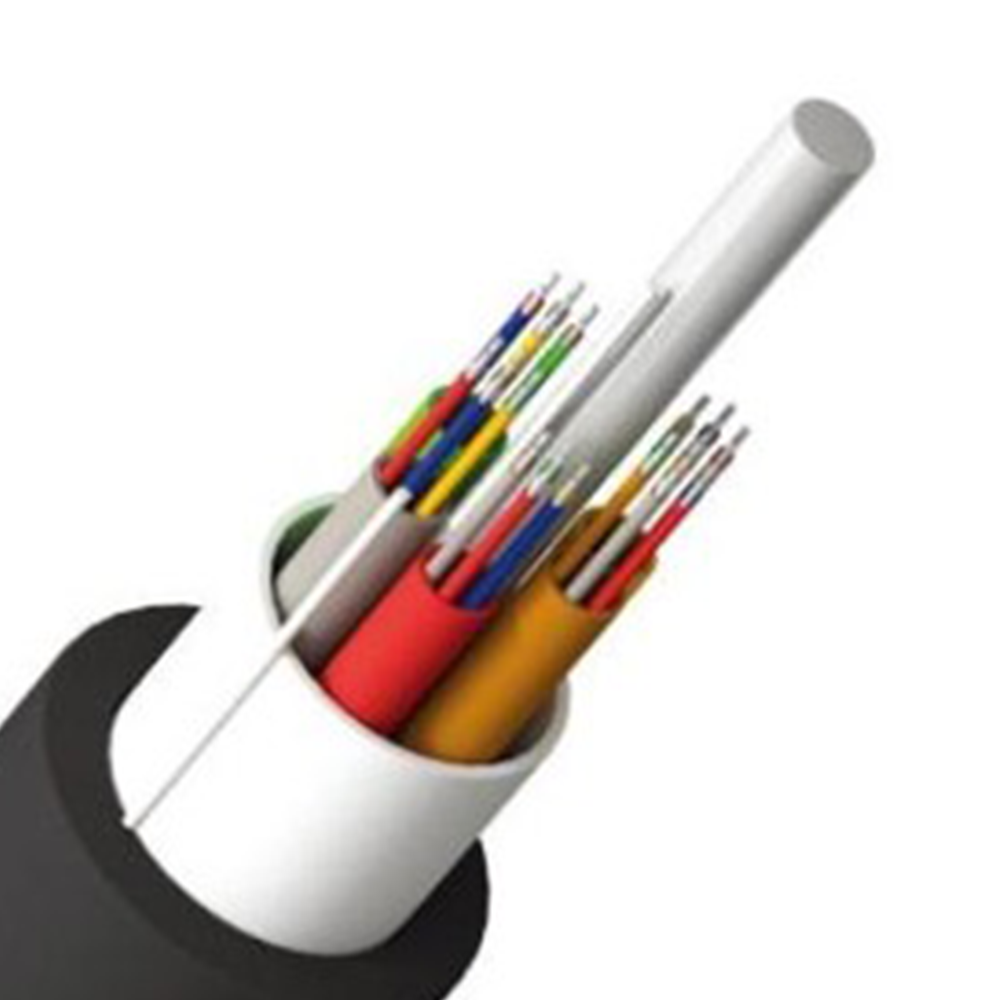

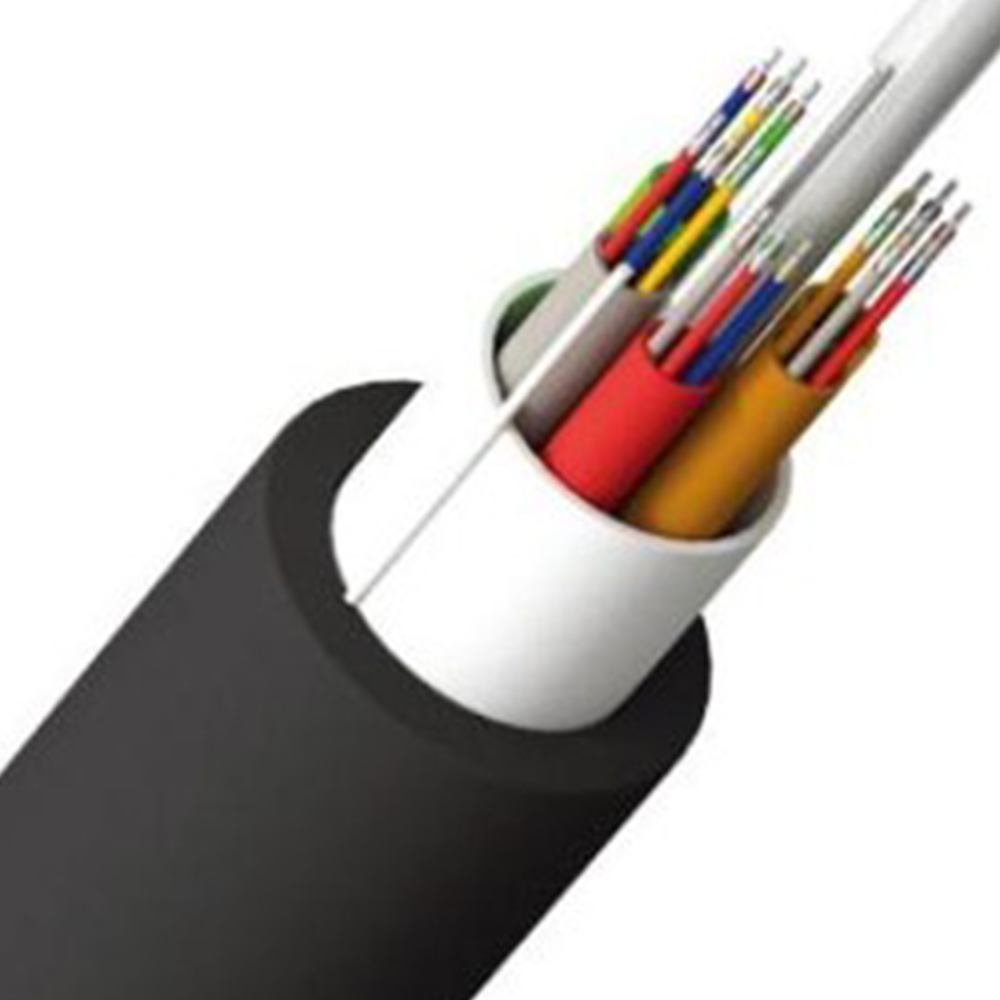

LOOSE TUBE SINGLE JACKET MICRO OPTICAL CABLE

• Duct (Small and Microduct)
• Long Haul Communication Network
• Subscriber Network
• LAN

• Outstanding optical fiber protection by proven loose tube design
• Available with full range of fiber types and fiber count (up to 60C)
• Available for metallic or non-metallic central strength member
• Easy to handle by dry cable core
• General PE jacket or flame retardant jacket
• Colored stripe PE jackets available (if required)
• Outstanding mechanical & environmental properties

• Fiber Counts/Tube: 1~12
• Outer Diameter: 7.8 mm
• Weight: 43 kg/km

• Installation: -30°C to +60°C
• Operation: -40°C to +70°C

Fiber Counts		up to 60
Fiber Counts/Tube		1~12
Outer Diameter(mm)		7.8
Weight(kg/km)		43
Max. Pulling Tension(kg)		65
Min. Bend Radius(mm)	Installation	20 times of Cable outer diameter
	Operation	10 times of Cable outer diameter
Temperature	Installation	-30°C ~ +60°C
	Operation	-40°C ~ +70°C
