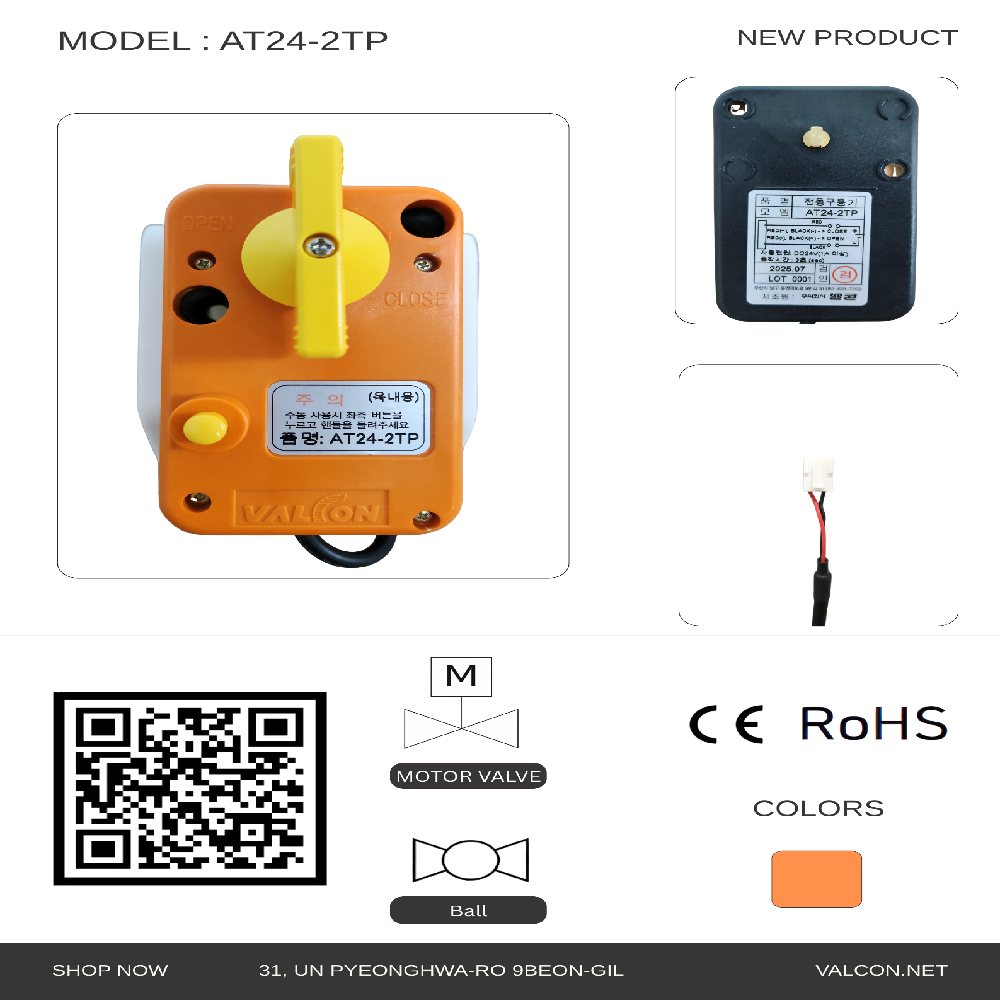

Motorized Actuators DC 24V (Excluding Ball Valve) - AT24-2TP (2-Wire (4 N.M))

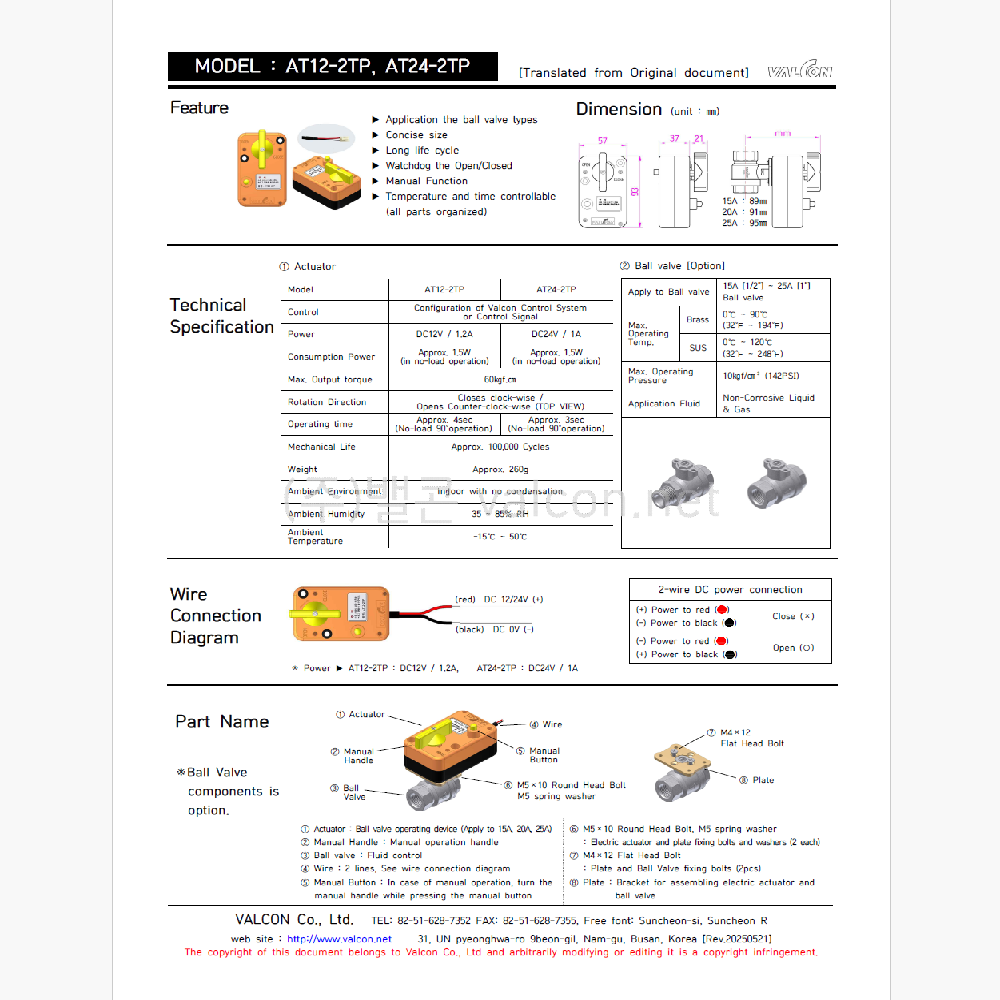

Product Overview

The AT12-2TP operates on DC12V / 1.2A, and the AT24-2TP operates on DC24V / 1A. Both models use a simple 2-wire DC power configuration for open and close control.

• Max. Output Torque: 60 kgf·cm

• Operating Time (90° rotation, no-load):

  • AT12-2TP: approx. 4 seconds

  • AT24-2TP: approx. 3 seconds

• Power Consumption (No-load): approx. 1.5W

• Mechanical Life: Approx. 100,000 cycles

• Weight: Approx. 260 g

• Rotation Direction: Closes clockwise / Opens counter-clockwise (top view)

The actuator is designed for indoor environments without condensation. Ambient operating conditions are -15°C to 50°C with humidity between 35% and 85% RH.

Compatible Ball Valves

Applicable valve sizes:

• 15A (1/2")

• 20A (3/4")

• 25A (1")

Valve Operating Conditions

Maximum Operating Temperature

• Brass Valve: 0°C to 90°C

• Stainless Steel (SUS) Valve: 0°C to 120°C

Maximum Operating Pressure: 10 kgf/cm² (142 PSI)
Application Fluid: Non-corrosive liquids and gases

These specifications make the AT-2TP series suitable for clean water systems, gas control systems, and non-corrosive fluid handling applications.

2-Wire DC Control System

The actuator operates using a 2-wire DC power configuration:

• Red: DC 12/24V (+)

• Black: DC 0V (–)

Control Logic:

• Standard polarity → Close

• Reverse polarity → Open

This simple wiring method allows easy integration into relay panels, controllers, or automated systems.

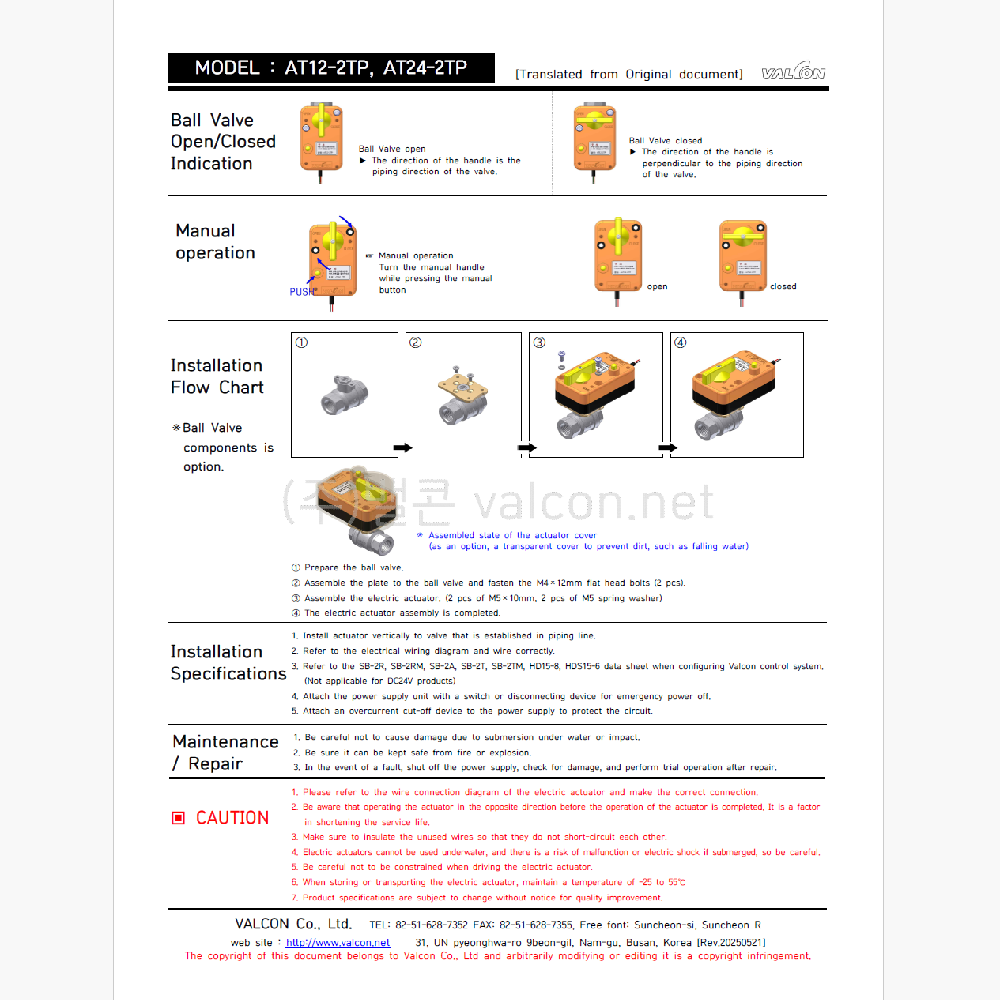

Open/Close Indication

Valve position can be confirmed by observing the direction of the handle:

• Valve Open: The handle aligns with the piping direction.

• Valve Closed: The handle is perpendicular to the piping direction.

This intuitive mechanical indication enables quick visual confirmation of valve status.

Manual Operation

In case of power interruption or system maintenance:

• Press the manual button.

• Turn the manual handle simultaneously to open or close the valve.

This ensures safe and reliable manual operation without damaging internal components.

Installation Guidelines

1. Install the actuator vertically onto a valve already secured in the piping line.

2. Follow the electrical wiring diagram for proper connection.

3. When configuring with a Valcon control system, refer to compatible control modules (not applicable for DC24V control references).

4. Install a power switch or disconnecting device for emergency shut-off.

5. Attach an overcurrent protection device to safeguard the circuit.

Maintenance & Safety Precautions

• Do not submerge the actuator in water, as it may cause malfunction or electric shock.

• Avoid mechanical impact and exposure to fire or explosion hazards.

• Do not operate the actuator in the opposite direction before the previous operation is completed, as this may reduce service life.

• Insulate unused wires properly to prevent short circuits.

• Storage and transportation temperature range: -25°C to 55°C.

Key Advantages

• Compact and lightweight (approx. 260 g)

• Fast operating speed (3–4 seconds)

• Long mechanical durability (approx. 100,000 cycles)

• Low power consumption

• Simple 2-wire DC control

• Clear mechanical open/close indication

• Manual override functionality
