Motorized Actuators DC 12V (Excluding Ball Valve) - AT12-2TP (2-Wire (6 N.M))

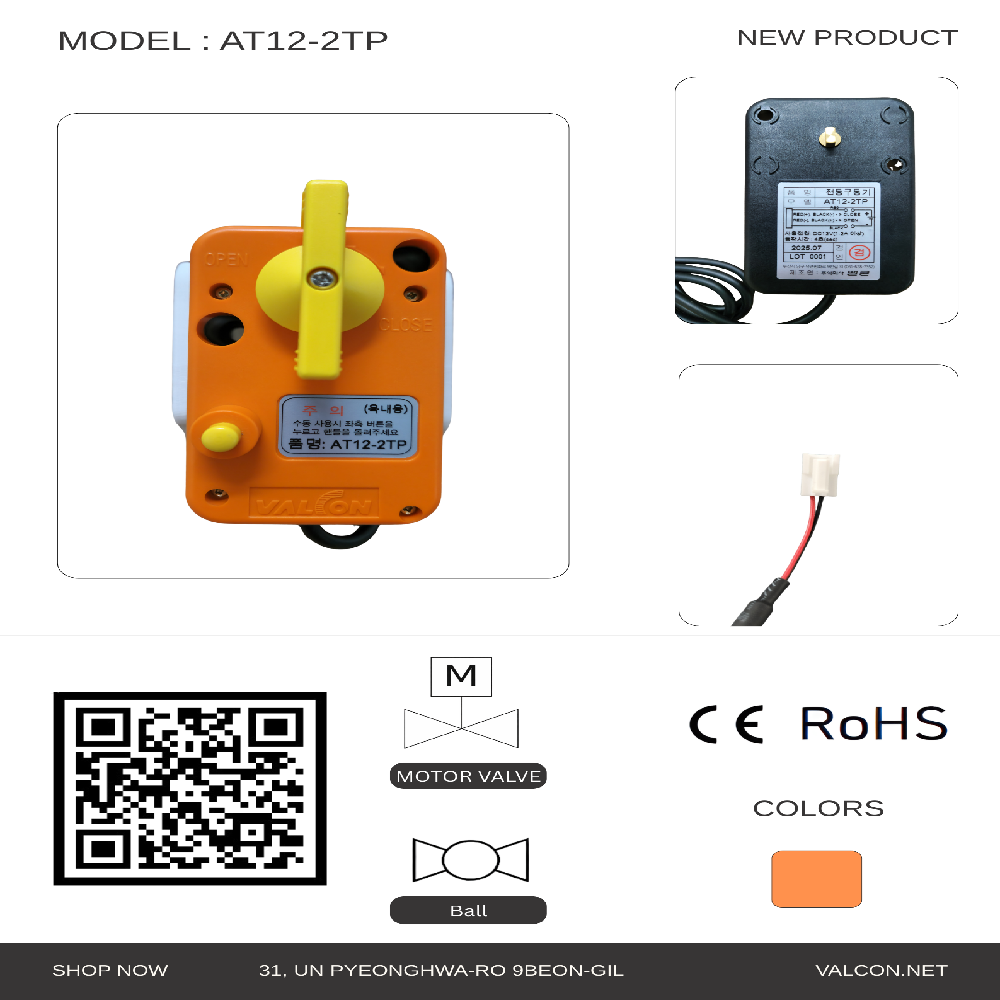

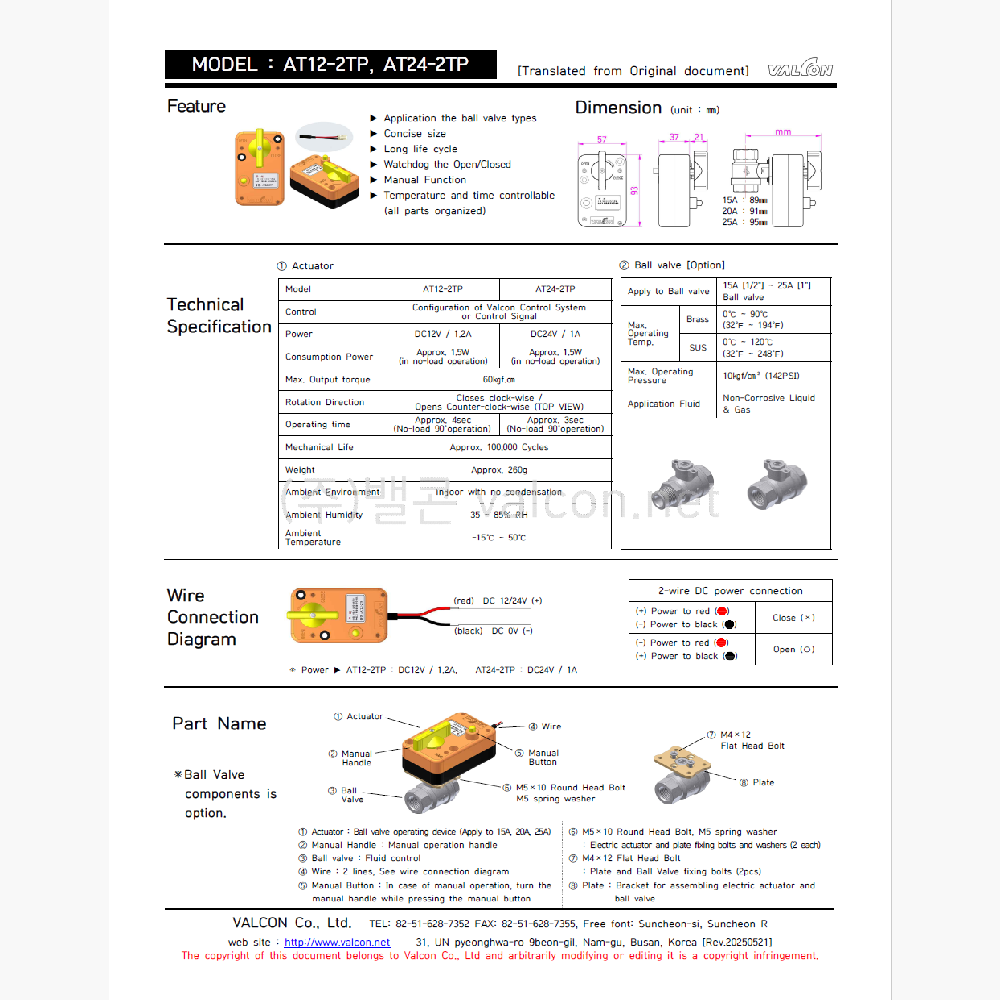

Product Overview

The AT12-2TP operates on DC12V / 1.2A, and the AT24-2TP operates on DC24V / 1A. Both models use a simple 2-wire DC power connection system.

• Max. Output Torque: 60 kgf·cm

• Operating Time (90° rotation, no-load):

  • AT12-2TP: approx. 4 seconds

  • AT24-2TP: approx. 3 seconds

• Power Consumption (No-load): approx. 1.5W

• Mechanical Life: Approx. 100,000 cycles

• Weight: Approx. 260 g

• Rotation Direction: Closes clockwise / Opens counter-clockwise (top view)

The actuator is designed for indoor environments without condensation and operates within an ambient temperature range of -15°C to 50°C and humidity range of 35–85% RH.

Compatible Ball Valves

The AT-2TP series applies to ball valves ranging from:

• 15A (1/2")

• 20A (3/4")

• 25A (1")

Valve Specifications

Maximum Operating Temperature

• Brass Valve: 0°C to 90°C

• Stainless Steel (SUS): 0°C to 120°C

Maximum Operating Pressure: 10 kgf/cm² (142 PSI)
Application Fluid: Non-corrosive liquids and gases

These specifications ensure stable operation in light industrial, residential, and equipment-mounted applications.

2-Wire DC Control System

The actuator uses a 2-wire DC power configuration:

• Red: DC 12/24V (+)

• Black: DC 0V (–)

Control Logic:

• Normal polarity → Close

• Reverse polarity → Open

This straightforward wiring system allows easy integration into control panels and automated systems.

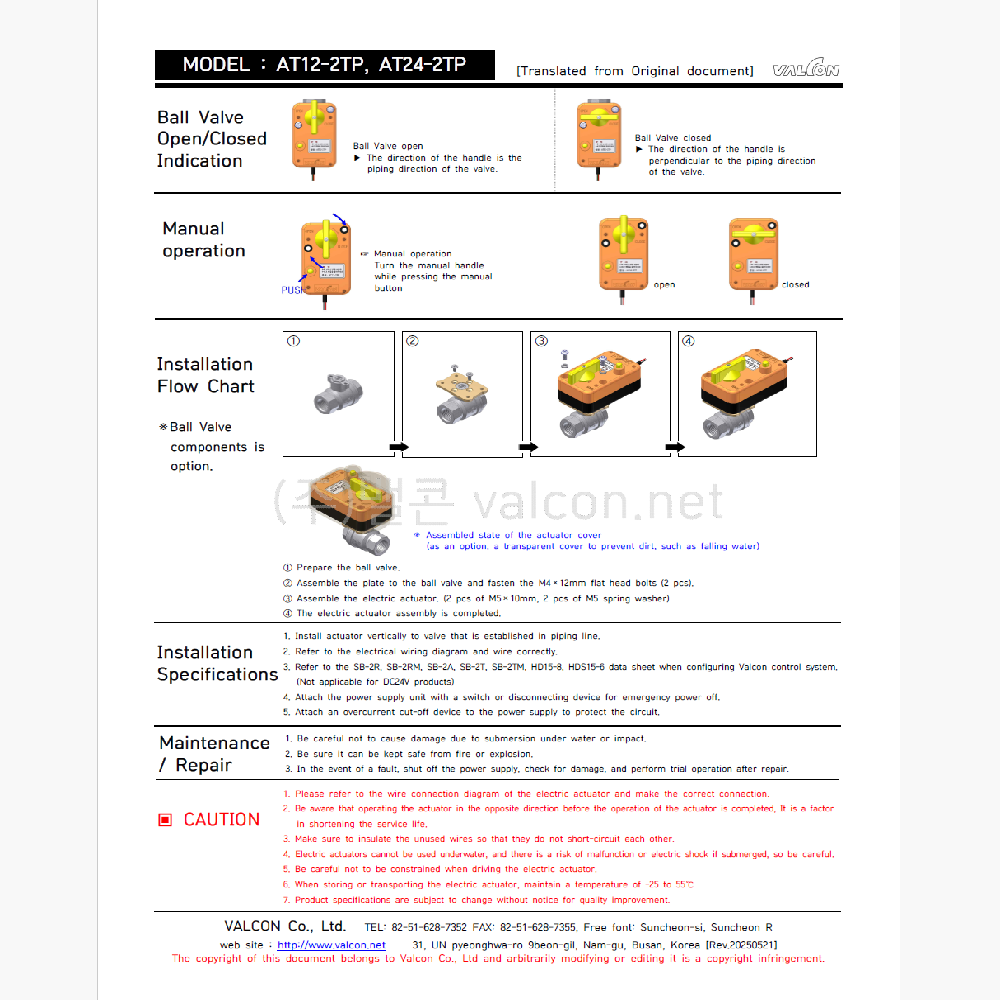

Open/Close Indication

The valve position can be visually confirmed by the direction of the handle:

• Ball Valve Open: Handle direction aligns with the piping direction.

• Ball Valve Closed: Handle direction is perpendicular to the piping direction.

This intuitive mechanical indication ensures quick confirmation of valve status.

Manual Operation

In case of power interruption or maintenance, manual operation is available:

• Press the manual button.

• Turn the manual handle simultaneously to open or close the valve.

This design ensures emergency operability without damaging internal components.

Installation Guidelines

1. Install the actuator vertically onto the valve already fixed in the pipeline.

2. Follow the electrical wiring diagram and connect properly.

3. When configuring a Valcon control system, refer to the appropriate control modules for compatibility (not applicable for DC24V control references).

4. Install a power switch or disconnecting device for emergency shut-off.

5. Use an overcurrent protection device to safeguard the circuit.

Maintenance & Safety Precautions

• Do not submerge the actuator in water, as this may cause malfunction or electric shock.

• Avoid impact damage and exposure to fire or explosion hazards.

• Do not operate the actuator in the opposite direction before the previous operation has completed, as this may shorten its service life.

• Insulate unused wires properly to prevent short circuits.

• Storage and transportation temperature range: -25°C to 55°C.

Key Advantages

• Compact and lightweight (approx. 260 g)

• Fast operating speed (3–4 seconds)

• Long service life (approx. 100,000 cycles)

• Low power consumption

• Simple 2-wire DC control

• Clear mechanical open/close indication

• Manual override functionality
