Arm wrapping machine

1. Product Overview

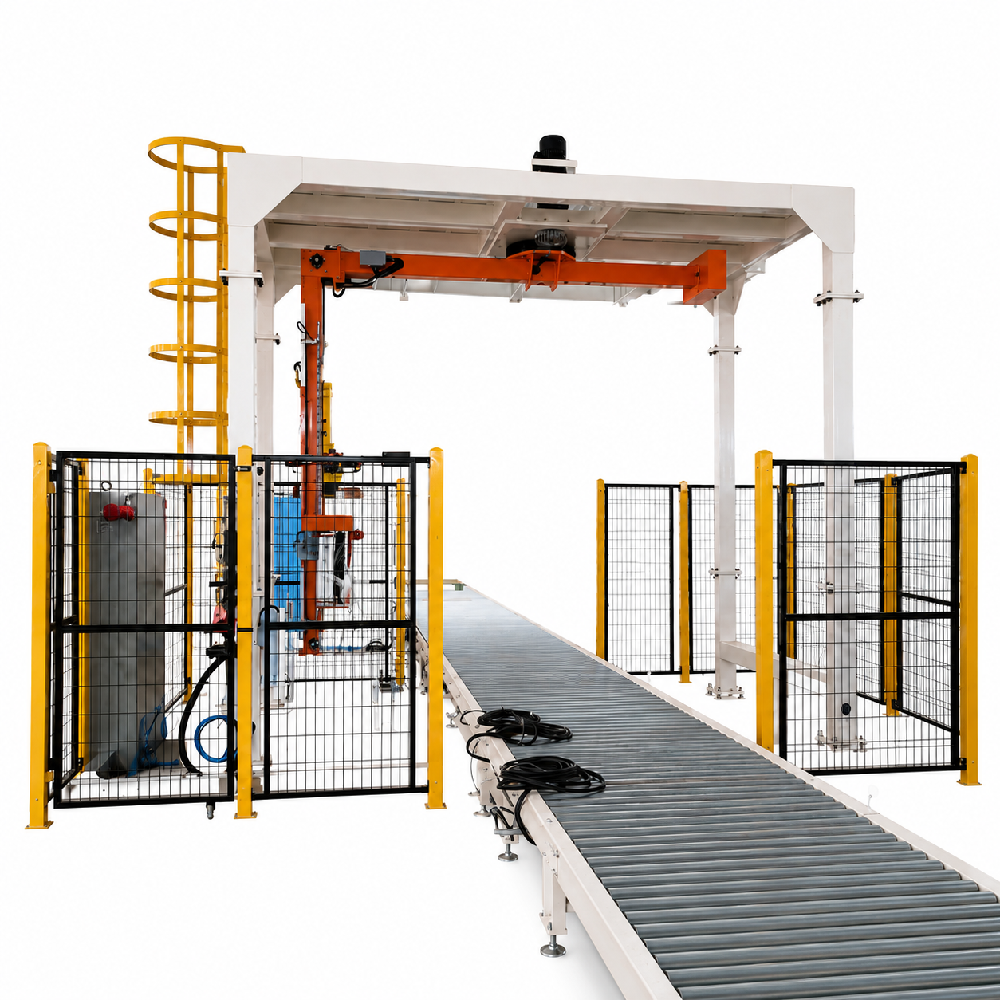

Automatic Rotary Arm Pallet Stretch Wrapping Machine

The HD SYSTEM Automatic Rotary Arm Pallet Stretch Wrapping Machine is designed for stable and efficient wrapping of palletized products using stretch film.

Unlike conventional turntable wrapping machines, the pallet remains stationary while the wrapping arm rotates around the load. This structure is suitable for wrapping unstable, heavy, lightweight, or oversized products that may be difficult to rotate on a turntable.

The machine automatically controls the rotary arm movement, film carriage position, film tension, and wrapping cycles to provide consistent and uniform packaging quality.

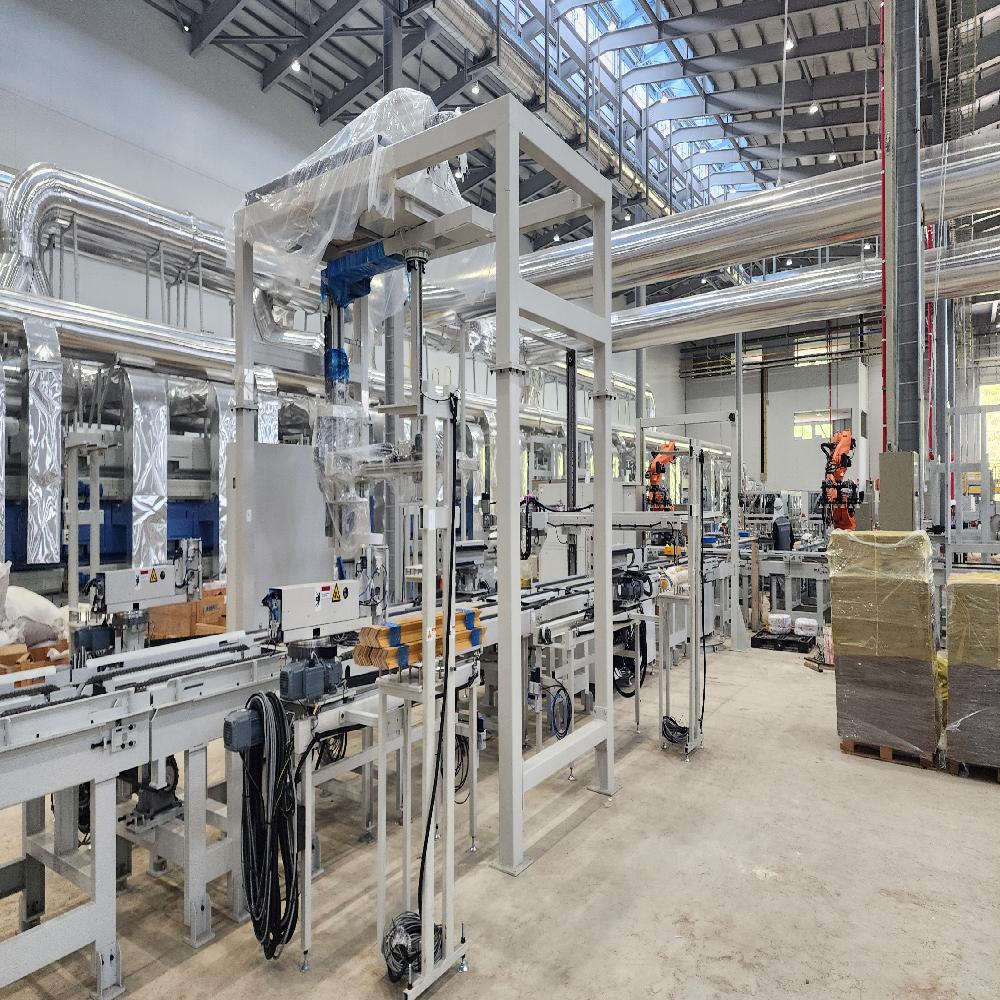

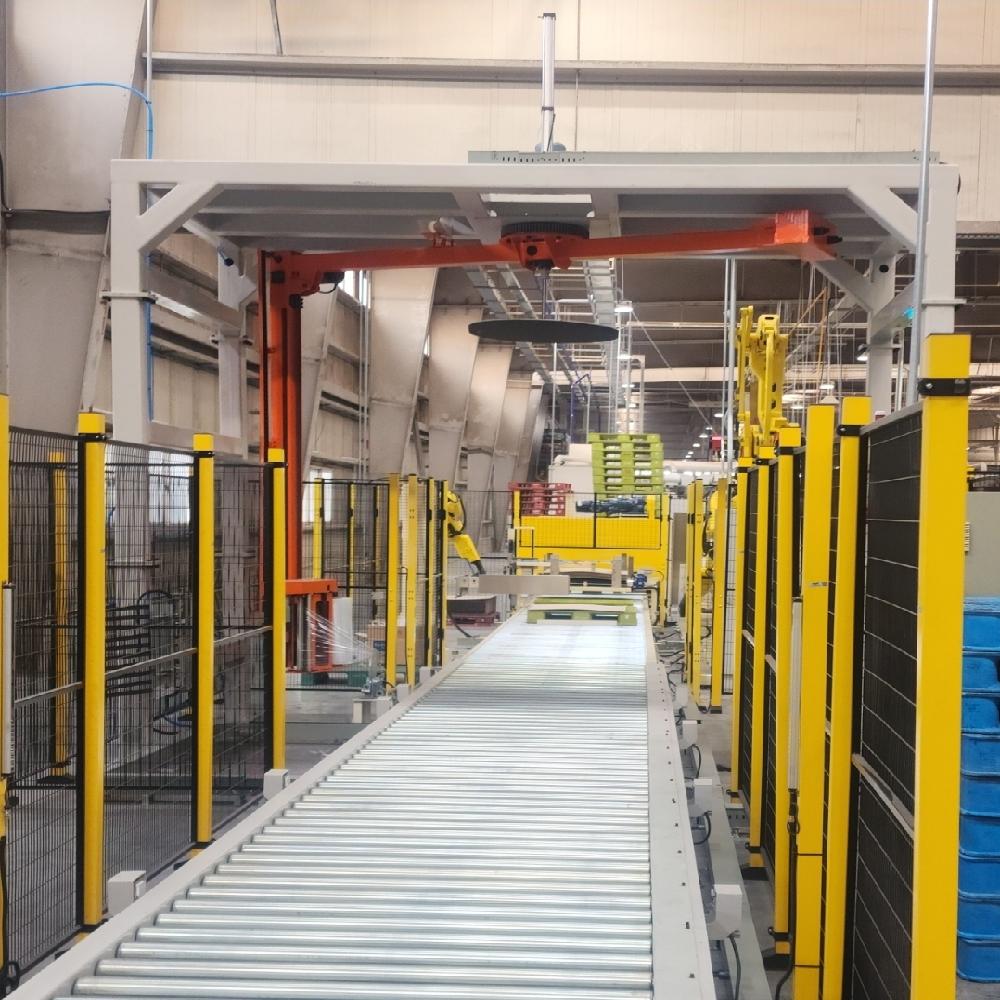

The system can also be integrated with conveyors and other automated packaging equipment for continuous production lines.

2. Key Features

• Rotary arm wrapping structure

• Pallet remains stationary during wrapping

• Suitable for unstable and heavy loads

• Suitable for oversized products

• Automatic wrapping cycle

• Automatic film carriage up/down movement

• Adjustable rotary arm speed

• Adjustable film tension

• Adjustable film stretch ratio

• Adjustable wrapping cycles

• Automatic load height detection

• Soft Start & Stop

• Stable film overlap control

• PLC-based control system

• HMI touch screen available

• Safety fence and safety protection system

• Suitable for automatic packaging line integration

• Customized design available

3. Machine Specifications

* Actual specifications depend on machine configuration and customer requirements.

4. Wrapping Principle

The rotary arm wrapping system keeps the pallet and product stationary while the wrapping arm rotates around the load.

During the wrapping cycle:

1. Pallet enters the wrapping position.

2. Pallet position is detected.

3. Stretch film is automatically attached or prepared.

4. Rotary arm starts rotating around the load.

5. Film carriage moves vertically according to the programmed wrapping pattern.

6. Film tension and stretch ratio are controlled during wrapping.

7. Required top and bottom wrapping cycles are completed.

8. Rotary arm returns to the initial position.

9. Film is cut and sealed when the automatic film cutting option is installed.

10. The wrapped pallet exits the wrapping area.

5. Wrapping Parameters

The following parameters can be adjusted according to the product and packaging requirements:

• Rotary arm rotation speed

• Film carriage lifting speed

• Film tension

• Film stretch ratio

• Bottom wrapping cycles

• Top wrapping cycles

• Total wrapping cycles

• Film overlap

• Wrapping height

• Wrapping start position

• Wrapping end position

• Film reinforcement wrapping

Recipe management can be applied through the HMI to store different wrapping parameters for different products.

6. Suitable Applications

The rotary arm structure is particularly suitable for products that should not rotate during wrapping.

Recommended applications include:

• Heavy palletized products

• Unstable loads

• Tall products

• Lightweight products

• Oversized products

• Paper products

• Tissue and paper rolls

• Cartons and boxes

• Chemical products

• Pharmaceutical products

• Automotive parts

• Industrial materials

• Construction materials

• General palletized products

7. Optional Features

• Power Pre-Stretch Film Carriage

• Dual Film Carriage

• Automatic Film Cutting & Sealing

• Automatic Film Clamping

• Top Press Unit

• Pallet Positioning System

• Automatic Pallet Stopper

• Safety Fence

• Safety Light Curtain

• HMI Touch Screen

• PLC Control

• Recipe Management

• Remote Monitoring

• Automatic Infeed Conveyor

• Automatic Outfeed Conveyor

• Top Sheet Applicator

• Corner Protection Applicator

• Barcode / Product Data Interface

• Production Counter

• Automatic Film Replacement System

8. Advantages

Stationary Pallet Wrapping

The pallet does not need to rotate, reducing the risk of load movement during the wrapping process.

Suitable for Heavy & Unstable Loads

The rotary arm structure is suitable for products that are difficult or unsafe to rotate on a turntable.

Flexible Wrapping

Wrapping speed, film tension, stretch ratio, and wrapping cycles can be configured according to product requirements.

High Automation Capability

The machine can be connected with conveyors, top sheet systems, pallet positioning systems, and other packaging equipment.

Customized Design

Rotary arm dimensions, wrapping height, film carriage, load capacity, conveyor configuration, and control functions can be customized according to the application.

9. Manufacturer

HD SYSTEM

HD SYSTEM specializes in the design and manufacture of pallet stretch wrapping machines and automated packaging systems.

Our rotary arm wrapping machines can be customized according to pallet dimensions, product characteristics, load weight, production capacity, film specifications, and factory layout.
