AIR FREE Compressed Air Distribution 25A 4Port

The AIR FREE Compressed Air Distribution Manifold is designed to distribute compressed air from one main supply line to multiple production lines in an organized and efficient manner.

Model 25A-4 is a 4-port, single-row compressed air distribution manifold designed for industrial compressed air piping systems. It has a 25A inlet, four 15A outlets, and a 15A drain connection. The maximum working pressure is 16 kgf/cm², the internal capacity is 3 liters, and the product weight is approximately 3.0 kg. The overall height is 380 mm, and the body diameter is approximately 120 mm.

The manifold is available with a 20A or 25A inlet connection, allowing users to select a suitable inlet size according to the compressed-air piping configuration. Each air outlet is manufactured with a 15A connection size, making it suitable for connection to various production equipment, pneumatic machinery, air tools, and individual work areas. The number of outlets can be customized according to the customer’s required air supply points, piping layout, installation space, and operating conditions.

Unlike a simple pipe branch, the manifold combines multiple compressed-air outlets in one compact unit, helping simplify complicated piping layouts and centralize air distribution.

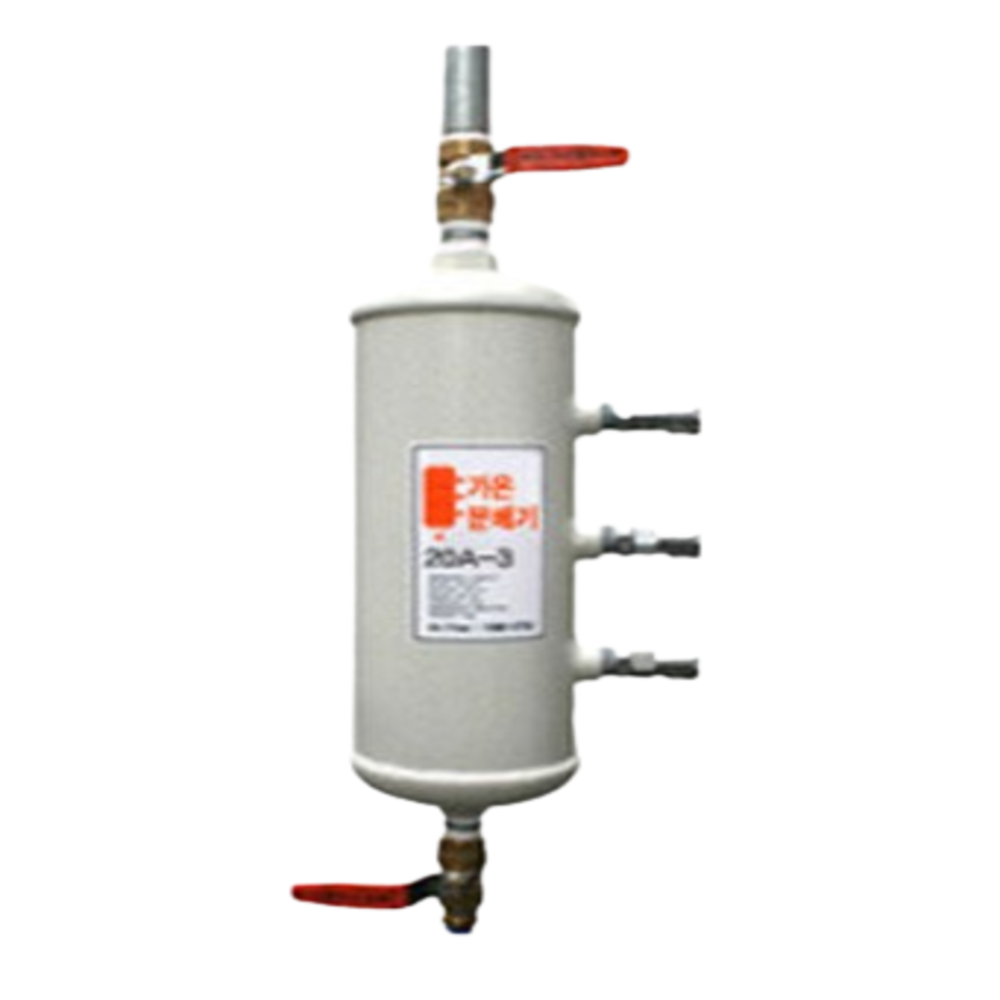

Each outlet is equipped for individual air-line control, allowing operators to open or close a selected line without interrupting the entire compressed-air supply system.

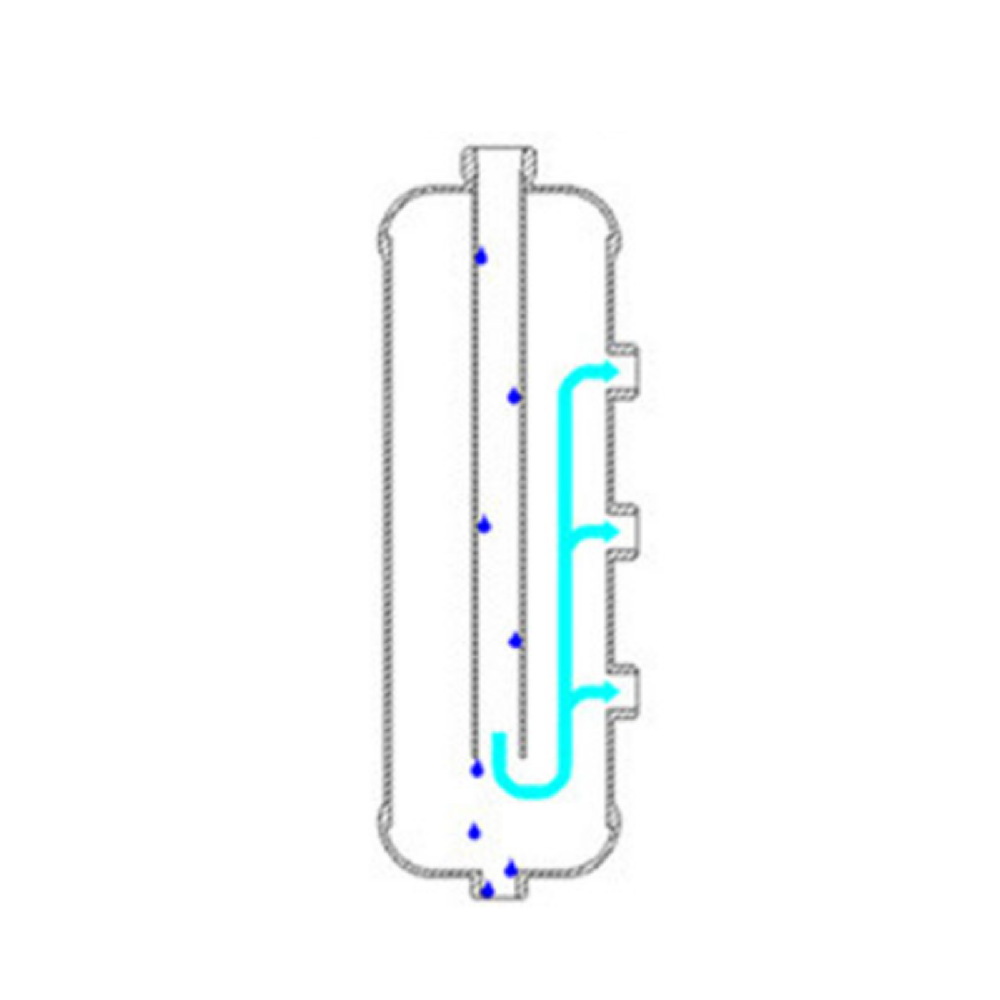

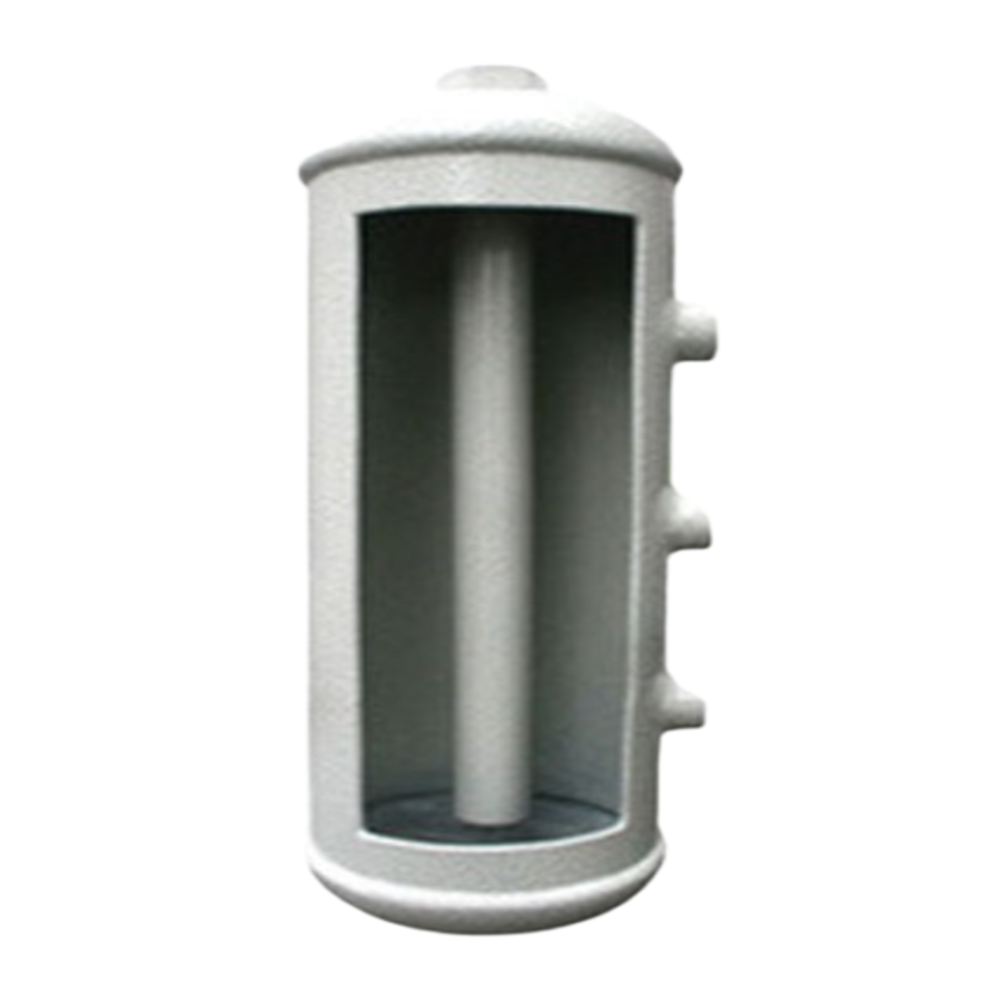

The internal flow structure is designed to help separate and collect moisture contained in compressed air before it is supplied to downstream piping and equipment.

Collected condensate can be discharged through the drain section, helping support easier maintenance and more stable operation of the compressed-air piping system.

The centralized manifold configuration can reduce unnecessary piping branches and help keep compressor rooms, production lines, and industrial work areas clean and organized.

It is suitable for compressed-air systems used in manufacturing, machining, assembly, painting, packaging, automation, and other industrial applications requiring multiple air supply points.

The product can be manufactured according to customer requirements, including the inlet size, number of outlets, installation direction, piping arrangement, and site conditions.

Myungsung Air Plus provides professional consultation for compressed-air systems, including air compressor installation, piping, air treatment equipment, air distribution, inspection, maintenance, and customized system configuration.
